LM5022MME/NOPB Regulator Controller IC Positive Output DC-DC 10-VSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM5022MME/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Output Phases: | 1 |
|---|---|---|---|
| Voltage - Supply (Vcc/Vdd): | 6V ~ 60V | Frequency - Switching: | 200kHz ~ 990kHz |
| Duty Cycle: | (Max) 95% | Synchronous Rectifier: | No |
| Clock Sync: | Yes | Operating Temperature: | -40°C ~ 125°C (TJ) |
Product Description

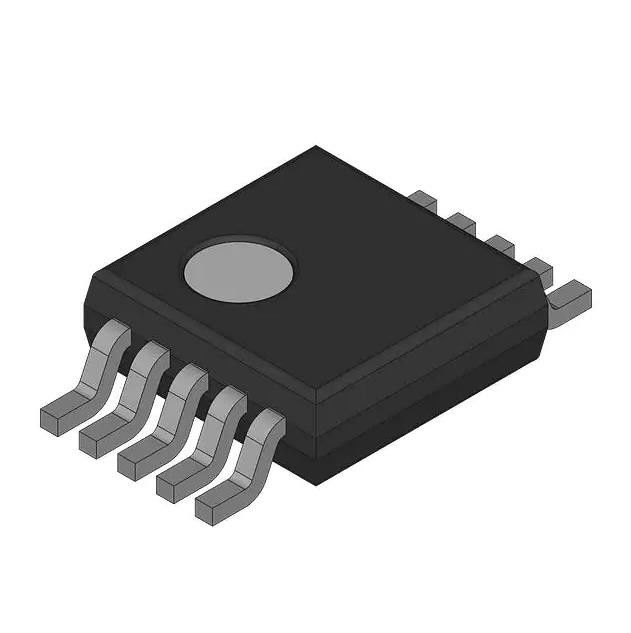

LM5022MME/NOPB Regulator Controller IC Positive Output DC-DC 10-VSSOP
Boost, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 10-VSSOP
Specifications of LM5022MME/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Mfr | National Semiconductor |
| Series | - |
| Package | Bulk |
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 6V ~ 60V |
| Frequency - Switching | 200kHz ~ 990kHz |
| Duty Cycle (Max) | 95% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
| Base Product Number | LM5022 |
Features of LM5022MME/NOPB
■ Internal 60V Startup Regulator
■ 1A Peak MOSFET Gate Driver
■ VIN Range 6V to 60V
■ Duty Cycle Limit of 90%
■ Programmable UVLO with Hysteresis
■ Cycle-by-Cycle Current Limit
■ External Synchronizable (AC-coupled)
■ Single Resistor Oscillator Frequency Set
■ Slope Compensation
■ Adjustable Soft-start
■ MSOP-10 Package
Applications of LM5022MME/NOPB
■ Boost Converter
■ SEPIC Converter
