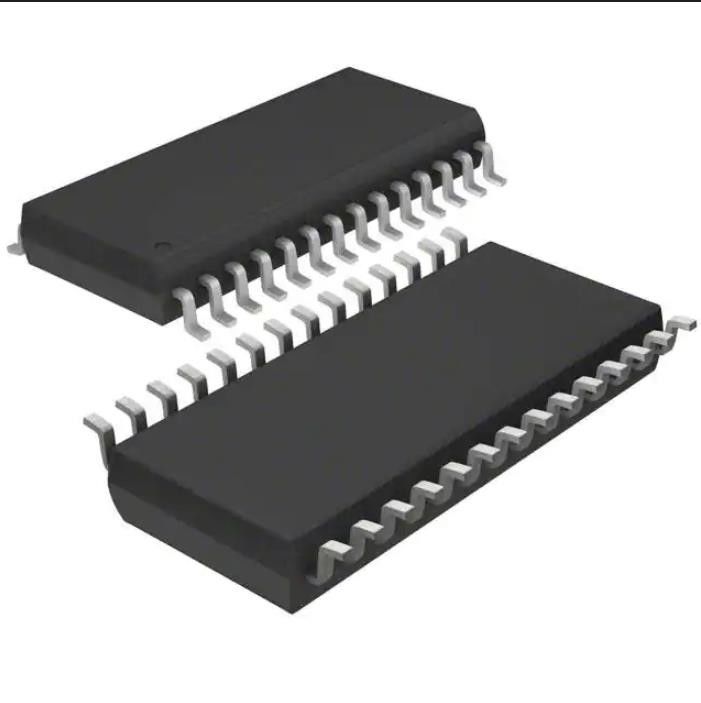

ADS1248IPWR Temperature Sensor Chip Ic Adc 24bit Sigma-Delta 28tssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS1248IPWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | PGA, Temperature Sensor | Number Of A/D Converters: | 1 |
|---|---|---|---|
| Architecture: | Sigma-Delta | Reference Type: | External, Internal |
| Voltage - Supply, Analog: | 2.7V ~ 5.25V | Voltage - Supply, Digital: | 2.7V ~ 5.25V |
| Operating Temperature: | -40°C ~ 105°C | Package / Case: | 28-TSSOP (0.173", 4.40mm Width) |
Product Description
ADS1248IPWR Temperature Sensor Chip Ic Adc 24bit Sigma-Delta 28tssop
24 Bit Analog to Digital Converter 4, 7 Input 1 Sigma-Delta 28-TSSOP
Specifications of ADS1248IPWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 2k |
| Number of Inputs | 4, 7 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | PGA, Temperature Sensor |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | ADS1248 |
Features of ADS1248IPWR
• Programmable Data Rates Up to 2 kSPS
• Single-Cycle Settling for All Data Rates
• Simultaneous 50-Hz and 60-Hz Rejection at 20 SPS
• Analog Multiplexer With 8 (ADS1248) and 4 (ADS1247) Independently Selectable Inputs
• Low-Noise PGA: 48 nVRMS at PGA 128
• Dual-Matched Programmable Excitation Current Sources
• Low-Drift Internal 2.048-V Reference: 10 ppm/°C (Maximum)
• Sensor Burn-Out Detection
• 4 or 8 General-Purpose I/Os (ADS1247, ADS1248)
• Internal Temperature Sensor
• Power Supply and VREF Monitoring (ADS1247, ADS1248)
• Self and System Calibration
• SPI™-Compatible Serial Interface
• Analog Supply: Unipolar (2.7 V to 5.25 V) and Bipolar ( 2.5 V) Operation
• Digital Supply: 2.7 V to 5.25 V
Applications of ADS1248IPWR
• Temperature Sensor Measurements:
– RTDs, Thermocouples, and Thermistors
• Pressure Measurements
• Flow Meters
• Factory Automation and Process Controls
Environmental & Export Classifications of ADS1248IPWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
