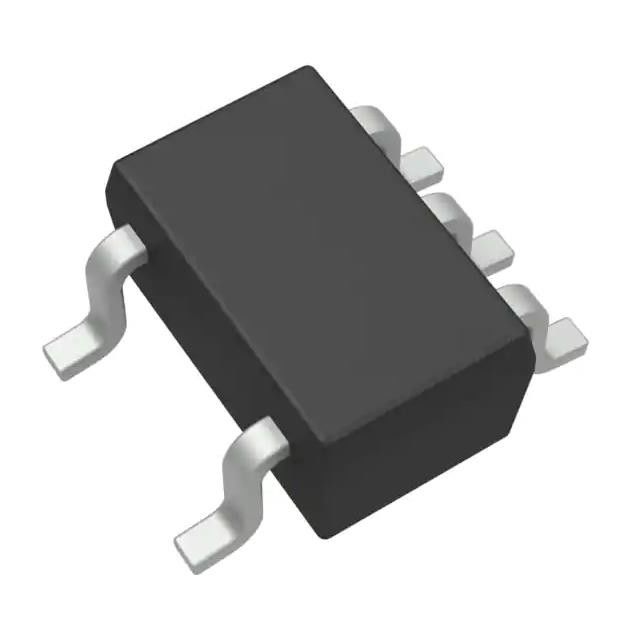

LM94022BIMGX/NOPB Temperature Sensor Chip -50C-150C SC70-5 5.5 ~ 13.6mV/°C
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM94022BIMGX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Sensing Temperature - Local: | -50°C ~ 150°C | Voltage - Supply: | 1.5V ~ 5.5V |
|---|---|---|---|
| Resolution: | 5.5 ~ 13.6mV/°C | Accuracy - Highest (Lowest): | ±1.5°C (±2.7°C) |
| Test Condition: | 20°C ~ 40°C (0°C ~ 150°C) | Operating Temperature: | -50°C ~ 150°C |
| Supplier Device Package: | SC-70-5 | Mounting Type: | Surface Mount |
Product Description
LM94022BIMGX/NOPB Temperature Sensor Chip -50C-150C SC70-5 5.5 ~ 13.6mV/°C
Temperature Sensor Analog, Local -50°C ~ 150°C 5.5 ~ 13.6mV/°C SC-70-5
Specifications of LM94022BIMGX/NOPB
| TYPE | DESCRIPTION |
| Category | Sensors, Transducers |
| Temperature Sensors | |
| Analog and Digital Output | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Sensor Type | Analog, Local |
| Sensing Temperature - Local | -50°C ~ 150°C |
| Sensing Temperature - Remote | - |
| Output Type | Analog Voltage |
| Voltage - Supply | 1.5V ~ 5.5V |
| Resolution | 5.5 ~ 13.6mV/°C |
| Features | Programmable Resolution |
| Accuracy - Highest (Lowest) | ±1.5°C (±2.7°C) |
| Test Condition | 20°C ~ 40°C (0°C ~ 150°C) |
| Operating Temperature | -50°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Base Product Number | LM94022 |
Features of LM94022BIMGX/NOPB
• LM94022/-Q1 is AEC-Q100 Grade 0 qualified and is Manufactured on an Automotive Grade Flow
• Low 1.5-V to 5.5-V Operation With Low 5.4-µA Supply Current
• Push-Pull Output With ±50-µA Source Current Capability
• Four Selectable Gains
• Very Accurate Over Wide Temperature Range of −50°C to +150°C:
– ±1.5ºC Temperature Accuracy for 20ºC to 40ºC Range
– ±1.8ºC Temperature Accuracy for –50ºC to 70ºC Range
– ±2.1ºC Temperature Accuracy for –50ºC to 90ºC Range
– ±2.7ºC Temperature Accuracy for –50ºC to 150ºC Range
• Output is Short-Circuit Protected
• Extremely Small SC70 Package
• For the Similar Functionality in a TO-92 Package, See LMT84, LMT85, LMT86, or LMT87
• Footprint Compatible With the Industry-Standard LM20 Temperature Sensor
Applications of LM94022BIMGX/NOPB
• Automotive
• Cell Phones
• Wireless Transceivers
• Battery Management
• Disk Drives
• Games
• Appliances
Environmental & Export Classifications of LM94022BIMGX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
