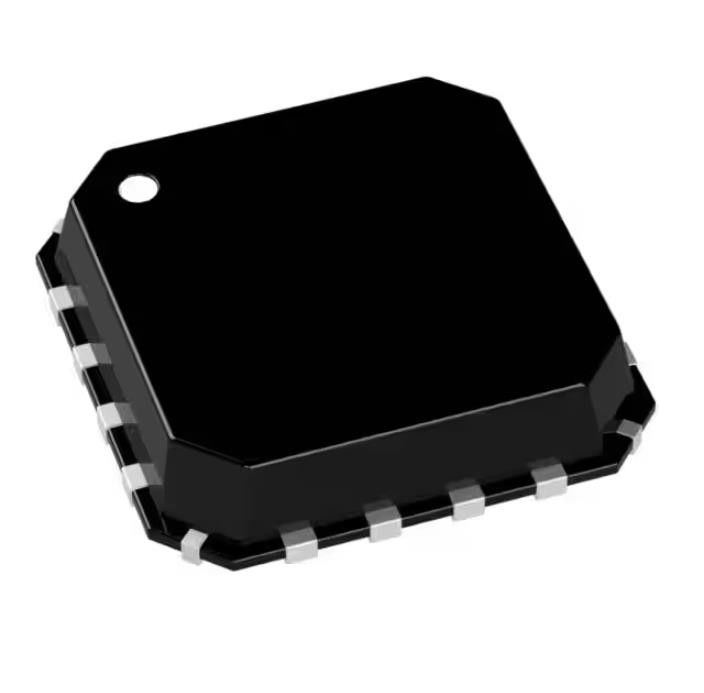

AD8222HACPZ-R7 Temperature Sensor Chip Inst Amp 2 Circuit 16LFCSP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AD8222HACPZ-R7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Slew Rate: | 2V/µs | Gain Bandwidth Product: | 7 MHz |
|---|---|---|---|
| -3db Bandwidth: | 1.2 MHz | Current - Input Bias: | 500 PA |
| Voltage - Input Offset: | 120 µV | Current - Supply: | 900µA (x2 Channels) |
| Current - Output / Channel: | 18 MA | Voltage - Supply Span (Min): | 4.6 V |
| High Light: | AD8222HACPZ-R7 Temperature Sensor Chip,AD8222HACPZ-R7,Inst Amp 2 Circuit 16LFCSP |
||
Product Description
AD8222HACPZ-R7 Integrated Circuits IC Inst Amp 2 Circuit 16lfcsp
AD8222HACPZ-R7 Integrated Circuits IC Chip Inst Amp 2 Circuit 16lfcsp
Instrumentation Amplifier 2 Circuit 16-LFCSP-VQ (4x4)
Specifications of AD8222HACPZ-R7
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Amplifier Type | Instrumentation |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 2V/µs |
| Gain Bandwidth Product | 7 MHz |
| -3db Bandwidth | 1.2 MHz |
| Current - Input Bias | 500 pA |
| Voltage - Input Offset | 120 µV |
| Current - Supply | 900µA (x2 Channels) |
| Current - Output / Channel | 18 mA |
| Voltage - Supply Span (Min) | 4.6 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Base Product Number | AD8222 |
Features of AD8222HACPZ-R7
Two channels in small 4 mm × 4 mm LFCSP
Gain set with 1 resistor per amplifier (G = 1 to 10,000)
Low noise
8 nV/√Hz at 1 kHz
0.25 µV p-p (0.1 Hz to 10 Hz)
High accuracy dc performance (B grade)
60 µV maximum input offset voltage
0.3 µV/°C maximum input offset drift
1.0 nA maximum input bias current
126 dB minimum CMRR (G = 100)
Excellent ac performance
140 kHz bandwidth (G = 100)
13 µs settling time to 0.001%
Differential output option (single channel)
Fully specified
Adjustable common-mode output
Supply range: ±2.3 V to ±18 V
Applications of AD8222HACPZ-R7
Multichannel data acquisition for
ECG and medical instrumentation
Industrial process controls
Wheatstone bridge sensors
Differential drives for
High resolution input ADCs
Remote sensors
Environmental & Export Classifications of AD8222HACPZ-R7
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
