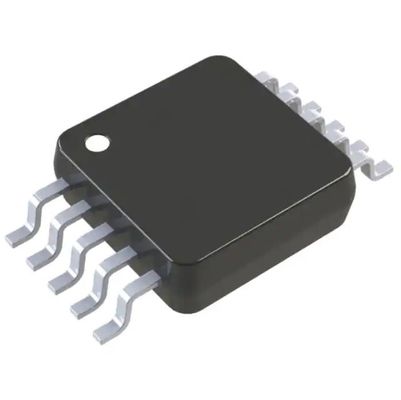

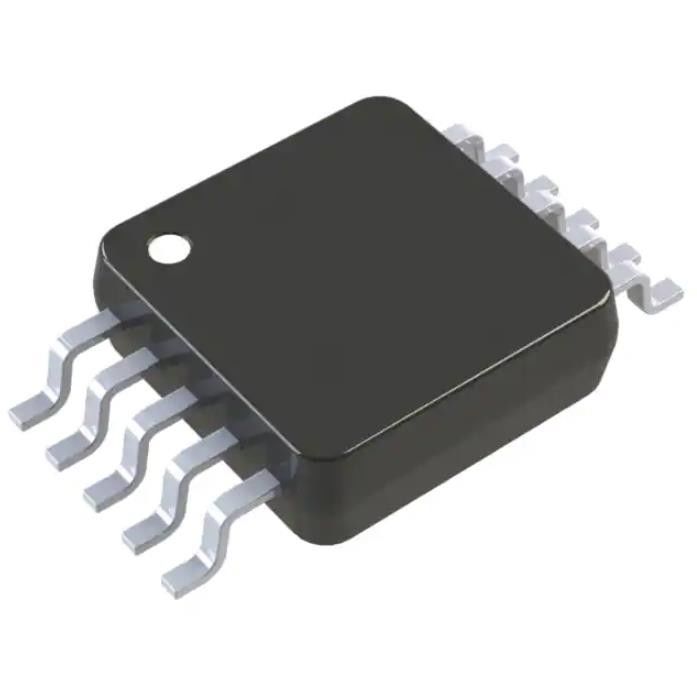

AD5644RBRMZ-5REEL7 ADE Chip IC Dac 14bit V-Out 10MSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AD5644RBRMZ-5REEL7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Number Of Bits: | 14 | Number Of D/A Converters: | 4 |
| Settling Time: | 5µs | Output Type: | Voltage - Buffered |
| Differential Output: | No | Data Interface: | SPI, DSP |
| High Light: | AD5644RBRMZ-5REEL7,10MSOP ADE Chip,Dac 14bit V-Out 10MSOP |
||
Product Description
AD5644RBRMZ-5REEL7 Integrated Circuits IC Chip Ic Dac 14bit V-Out 10msop
AD5644RBRMZ-5REEL7 Integrated Circuits IC Dac 14bit V-Out 10msop
14 Bit Digital to Analog Converter 4 10-MSOP
Specifications of AD5644RBRMZ-5REEL7
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Mfr | Analog Devices Inc. |
| Series | nanoDAC® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Number of Bits | 14 |
| Number of D/A Converters | 4 |
| Settling Time | 5µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±2, ±0.5 (Max) |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| Mounting Type | Surface Mount |
| Base Product Number | AD5644 |
Features of AD5644RBRMZ-5REEL7
• Low power, smallest pin-compatible, quad nanoDACs
- AD5664R: 16 bits
- AD5644R: 14 bits
- AD5624R: 12 bits
• User-selectable external or internal reference
- External reference default
- On-chip 1.25 V/2.5 V, 5 ppm/°C reference
• 10-lead MSOP; 10-lead, 3 mm × 3 mm LFCSP_WD; and
- 12-ball, 1.665 mm × 2.245 mm WLCSP
• 2.7 V to 5.5 V power supply
• Guaranteed monotonic by design
• Power-on reset to zero scale
• Per channel power-down
• Serial interface, up to 50 MHz
Applications of AD5644RBRMZ-5REEL7
• Process controls
• Data acquisition systems
• Portable battery-powered instruments
• Digital gain and offset adjustment
• Programmable voltage and current sources
• Programmable attenuators
Environmental & Export Classifications of AD5644RBRMZ-5REEL7
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
