ACPL-217-56BE Temperature Sensor Chip Optoisolator IC 3.75kv Trans 4so
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ACPL-217-56BE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Number Of Channels: | 1 |
|---|---|---|---|
| Voltage - Isolation: | 3750Vrms | Current Transfer Ratio (Min): | 130% @ 5mA |
| Current Transfer Ratio (Max): | 260% @ 5mA | Turn On / Turn Off Time (Typ): | 3µs, 3µs |
| Rise / Fall Time (Typ): | 2µs, 3µs | Input Type: | DC |
| High Light: | ACPL-217-56BE,Temperature Sensor Chip Optoisolator,Optoisolator IC 3.75kv |
||
Product Description

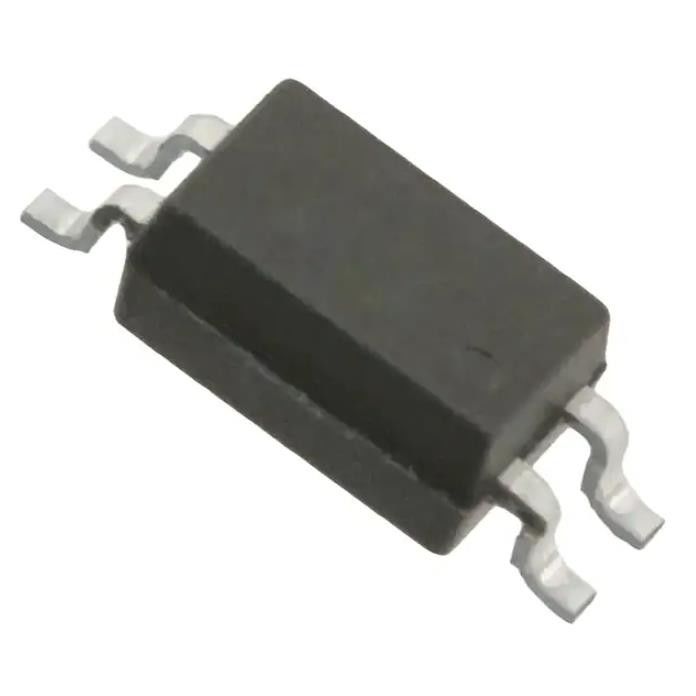

ACPL-217-56BE Integrated Circuits IC Chip Optoisolator 3.75kv Trans 4so
Optoisolator Transistor Output 3750Vrms 1 Channel 4-SO
Specifications of ACPL-217-56BE
| TYPE | DESCRIPTION |
| Category | Isolators |
| Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Mfr | Broadcom Limited |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 130% @ 5mA |
| Current Transfer Ratio (Max) | 260% @ 5mA |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Rise / Fall Time (Typ) | 2µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC (0.173", 4.40mm Width) |
| Supplier Device Package | 4-SO |
| Base Product Number | ACPL-217 |
Features of ACPL-217-56BE
• Current transfer ratio (CTR): 50% (minimum) at IF = 5 mA, VCC = 5V
• High input-output isolation voltage (VISO): 3750VRMS
• Non-saturated response time (tr): 2 μs (typical) at VCC = 10V, IC = 2 mA, RL= 100Ω
• SO package
• CMR: 10 kV/μs (typical)
• Safety and regulatory approvals
– cUL
– IEC/EN/DIN EN 60747-5-2
• Available options
– CTR Ranks 0, A, B, C, and D
Applications of ACPL-217-56BE
• I/O Interface for programmable controllers, computers
• Sequence controllers
• System appliances, measuring instruments
• Signal transmission between circuits of different potentials and impedances
Environmental & Export Classifications of ACPL-217-56BE
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
