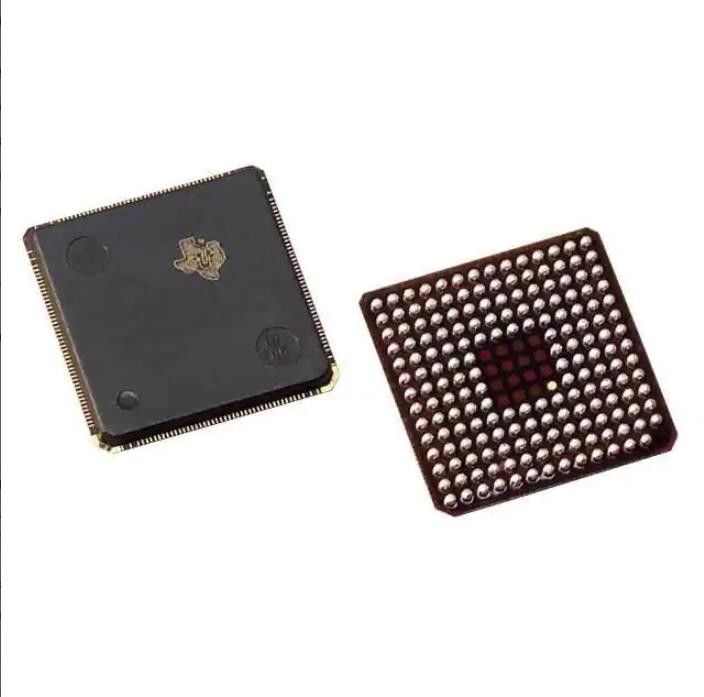

TMS320F2812ZHHS Temperature Sensor Chip MCU 32bit 256kb Flash 179bga
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TMS320F2812ZHHS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Series: | Automotive, AEC-Q100, C2000™ C28x Fixed-Point | Package: | Tube |
|---|---|---|---|
| Product Status: | Obsolete | Core Processor: | C28x |
| Core Size: | 32-Bit Single-Core | Speed: | 150MHz |
| Connectivity: | CANbus, EBI/EMI, McBSP, SCI, SPI, UART/USART | Peripherals: | DMA, POR, PWM, WDT |
| High Light: | TMS320F2812ZHHS,Temperature Sensor Chip MCU,MCU 32bit 256kb Flash 179bga |
||
Product Description
TMS320F2812ZHHS Integrated Circuits IC Mcu 32bit 256kb Flash 179bga
C28x Automotive, AEC-Q100, C2000™ C28x Fixed-Point Microcontroller IC 32-Bit Single-Core 150MHz 256KB (128K x 16) FLASH 179-BGA MicroStar (12x12)
Specifications of TMS320F2812ZHHS
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100, C2000™ C28x Fixed-Point |
| Package | Tube |
| Product Status | Obsolete |
| Core Processor | C28x |
| Core Size | 32-Bit Single-Core |
| Speed | 150MHz |
| Connectivity | CANbus, EBI/EMI, McBSP, SCI, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 56 |
| Program Memory Size | 256KB (128K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 18K x 16 |
| Voltage - Supply (Vcc/Vdd) | 1.81V ~ 2V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 179-LFBGA |
| Supplier Device Package | 179-BGA MicroStar (12x12) |
| Base Product Number | TMS320 |
Features of TMS320F2812ZHHS
• High-Performance Static CMOS Technology
– 150 MHz (6.67-ns Cycle Time)
– Low-Power (1.8-V Core at 135 MHz, 1.9-V Core at 150 MHz, 3.3-V I/O) Design
• JTAG Boundary Scan Support (1)
• High-Performance 32-Bit CPU ( TMS320C28x™)
– 16 x 16 and 32 x 32 MAC Operations
– 16 x 16 Dual MAC
– Harvard Bus Architecture
– Atomic Operations
– Fast Interrupt Response and Processing
– Unified Memory Programming Model
– 4M Linear Program/Data Address Reach
– Code-Efficient (in C/C++ and Assembly)
– TMS320F24x/LF240x Processor Source Code Compatible
• On-Chip Memory
– Flash Devices: Up to 128K x 16 Flash (Four 8K x 16 and Six 16K x 16 Sectors)
– ROM Devices: Up to 128K x 16 ROM
– 1K x 16 OTP ROM
– L0 and L1: 2 Blocks of 4K x 16 Each SingleAccess RAM (SARAM)
– H0: 1 Block of 8K x 16 SARAM
– M0 and M1: 2 Blocks of 1K x 16 Each SARAM
• Boot ROM (4K x 16)
– With Software Boot Modes
– Standard Math Tables
• External Interface (2812)
– Over 1M x 16 Total Memory
– Programmable Wait States
– Programmable Read/Write Strobe Timing
– Three Individual Chip Selects
• Endianness: Little Endian
• Clock and System Control
– Dynamic PLL Ratio Changes Supported
– On-Chip Oscillator
– Watchdog Timer Module
• Three External Interrupts
• Peripheral Interrupt Expansion (PIE) Block That
Supports 45 Peripheral Interrupts
• Three 32-Bit CPU-Timers
• 128-Bit Security Key/Lock
– Protects Flash/ROM/OTP and L0/L1 SARAM
– Prevents Firmware Reverse-Engineering
• Motor Control Peripherals
– Two Event Managers (EVA, EVB)
– Compatible to 240xA Devices
• Serial Port Peripherals
– Serial Peripheral Interface (SPI)
– Two Serial Communications Interfaces (SCIs), Standard UART
– Enhanced Controller Area Network (eCAN)
– Multichannel Buffered Serial Port (McBSP)
• 12-Bit ADC, 16 Channels
– 2 x 8 Channel Input Multiplexer
– Two Sample-and-Hold
– Single/Simultaneous Conversions
– Fast Conversion Rate: 80 ns/12.5 MSPS
• Up to 56 General-Purpose I/O (GPIO) Pins
• Advanced Emulation Features
– Analysis and Breakpoint Functions
– Real-Time Debug via Hardware
• Development Tools Include
– ANSI C/C++ Compiler/Assembler/Linker
– Code Composer Studio™ IDE
– DSP/BIOS™
– JTAG Scan Controllers
• Low-Power Modes and Power Savings
– IDLE, STANDBY, HALT Modes Supported
– Disable Individual Peripheral Clocks
APPLICATIONS of TMS320F2812ZHHS
The TMS320F2810, TMS320F2811, TMS320F2812, TMS320C2810, TMS320C2811, and TMS320C2812 devices, members of the TMS320C28x™ DSP generation, are highly integrated, high-performance solutions for demanding control applications. The functional blocks and the memory maps are described in Section 3, Functional Overview.Throughout this document, TMS320F2810, TMS320F2811, and TMS320F2812 are abbreviated as F2810, F2811, and F2812, respectively. F281x denotes all three Flash devices. TMS320C2810, TMS320C2811,and TMS320C2812 are abbreviated as C2810, C2811, and C2812, respectively. C281x denotes all three ROM devices. 2810 denotes both F2810 and C2810 devices; 2811 denotes both F2811 and C2811 devices; and 2812 denotes both F2812 and C2812 devices.
Environmental & Export Classifications of TMS320F2812ZHHS
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
