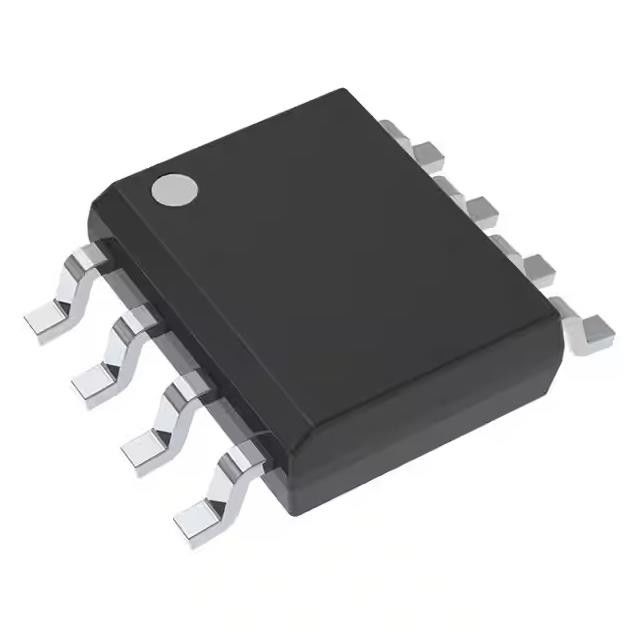

DAC7612U/2K5 Converter IC 12 Bit Digital To Analog Converter V-Out 8soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DAC7612U/2K5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status7µs (Typ) Output Type Voltage - Buffered Differential Output No Data Interface SPI: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Number Of Bits: | 12 | Number Of D/A Converters: | 2 |
| Settling Time: | 7µs (Typ) | Output Type: | Voltage - Buffered |
| Differential Output: | No | Data Interface: | SPI |
| High Light: | DAC7612U/2K5,12 Bit Digital To Analog Converter,DAC7612U 2K5 Converter IC |
||
Product Description
DAC7612U/2K5 Converter Temperature Sensor Chip Ic Dac 12bit V-Out 8soic
DAC7612U/2K5 Converter Integrated Circuits IC Dac 12bit V-Out 8soic
12 Bit Digital to Analog Converter 2 8-SOIC
Specifications of DAC7612U/2K5
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Number of Bits | 12 |
| Number of D/A Converters | 2 |
| Settling Time | 7µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Mounting Type | Surface Mount |
| Base Product Number | DAC7612 |
Features of DAC7612U/2K5
● LOW POWER: 3.7mW
● FAST SETTLING: 7µs to 1 LSB
● 1mV LSB WITH 4.095V FULL-SCALE
RANGE
● COMPLETE WITH REFERENCE
● 12-BIT LINEARITY AND MONOTONICITY
OVER INDUSTRIAL TEMP RANGE
● 3-WIRE INTERFACE: Up to 20MHz Clock
● SMALL PACKAGE: 8-Lead SOIC
APPLICATIONS of DAC7612U/2K5
● PROCESS CONTROL
● DATA ACQUISITION SYSTEMS
● CLOSED-LOOP SERVO-CONTROL
● PC PERIPHERALS
● PORTABLE INSTRUMENTATION
Environmental & Export Classifications of DAC7612U/2K5
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
