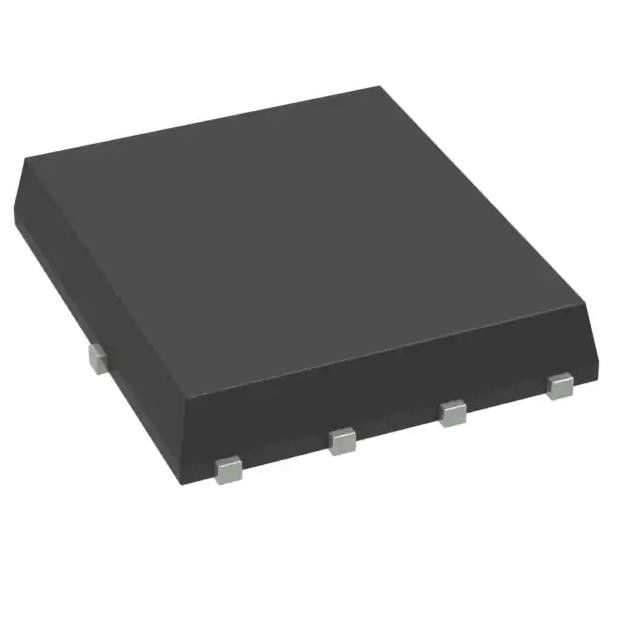

8PQFN FDMS5352 Transister IC Mosfet N-Ch 60V 13.6A/49A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FDMS5352 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | FET Type: | N-Channel |
|---|---|---|---|
| Technology: | MOSFET (Metal Oxide) | Drain To Source Voltage (Vdss): | 60 V |
| Current - Continuous Drain (Id) @ 25°C: | 13.6A (Ta), 49A (Tc) | Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs: | 6.7mOhm @ 13.6A, 10V | Vgs(th) (Max) @ Id: | 3V @ 250µA |
| High Light: | FDMS5352 Transister IC Mosfet,FDMS5352 Transister IC,8PQFN FDMS5352 |
||
Product Description
FDMS5352 Transister Integrated Circuits IC Mosfet N-Ch 60v 13.6a/49a 8pqfn
N-Channel 60 V 13.6A (Ta), 49A (Tc) 2.5W (Ta), 104W (Tc) Surface Mount 8-PQFN (5x6)
Specifications of FDMS5352
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | onsemi |
| Series | PowerTrench® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 13.6A (Ta), 49A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 6.7mOhm @ 13.6A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 131 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6940 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 104W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | FDMS53 |
Features of FDMS5352
• Max rbs(on)=6.7mΩat Vcs=10V,lb=13.6A
• Max fbs(on)=8.2mΩat VGs=4.5V,lb=12.3A
• Advanced Package and Silicon combination for low ros(on)
• MSL1 robust package design
• 100% UIL Tested
• RoHS Compliant
APPLICATIONS of FDMS5352
• DC - DC Conversion
Environmental & Export Classifications of FDMS5352
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
