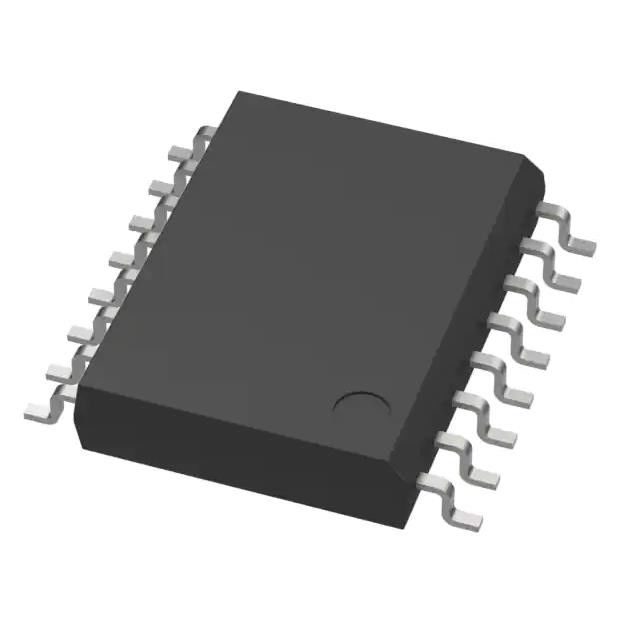

SI8622ET-ISR Temperature Sensor Chip IC DGTL ISO 5000V RMS 2CH GP 16SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SI8622ET-ISR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Technology: | Capacitive Coupling |
|---|---|---|---|
| Type: | General Purpose | Isolated Power: | No |
| Number Of Channels: | 2 | Inputs - Side 1/Side 2: | 1/1, UART/USART, USB |
| Channel Type: | Unidirectional | Voltage - Isolation: | 5000Vrms |
| High Light: | SI8622ET-ISR,5000V RMS Temperature Sensor Chip,2CH GP 16SOIC Temperature Sensor Chip |
||
Product Description
SI8622ET-ISR Integrated Circuits IC Dgtl Iso 5000vrms 2ch Gp 16soic
General Purpose Digital Isolator 5000Vrms 2 Channel 150Mbps 60kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
Specifications of SI8622ET-ISR
| TYPE | DESCRIPTION |
| Category | Isolators |
| Digital Isolators | |
| Mfr | Skyworks Solutions Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 1/1 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 60kV/µs |
| Data Rate | 150Mbps |
| Propagation Delay tpLH / tpHL (Max) | 13ns, 13ns |
| Pulse Width Distortion (Max) | 4.5ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 2.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | SI8622 |
Features of SI8622ET-ISR
• High-speed operation
• DC to 150 Mbps
• No start-up initialization required
• Wide Operating Supply Voltage
• 2.5–5.5 V
• Up to 5000 VRMS isolation
• Reinforced VDE 0884-10, 10 kV surgecapable (Si862xxT)
• 60-year life at rated working voltage
• High electromagnetic immunity
• Ultra low power (typical) 5 V Operation
• 1.6 mA per channel at 1 Mbps
• 5.5 mA per channel at 100 Mbps 2.5 V Operation
• 1.5 mA per channel at 1 Mbps
• 3.5 mA per channel at 100 Mbps
• Schmitt trigger inputs
• Selectable fail-safe mode
• Default high or low output (ordering option)
• Precise timing (typical)
• 10 ns propagation delay
• 1.5 ns pulse width distortion
• 0.5 ns channel-channel skew
• 2 ns propagation delay skew
• 5 ns minimum pulse width
• Transient Immunity 50 kV/µs
• AEC-Q100 qualification
• Wide temperature range
• –40 to 125 °C
• RoHS-compliant packages
• WB SOIC-16
• SOIC-8
• DFN-8 compact package
• Automotive-grade OPNs available
• AIAG compliant PPAP documentation support
• IMDS and CAMDS listing support
APPLICATIONS of SI8622ET-ISR
• Industrial automation systems
• Medical electronics
• Isolated switch mode supplies
• Isolated ADC, DAC
• Motor control
• Power inverters
• Communications systems
Environmental & Export Classifications of SI8622ET-ISR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
