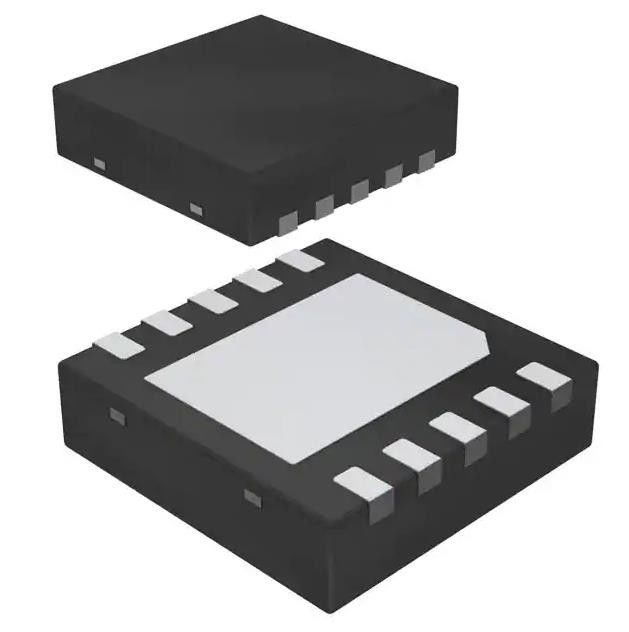

LM3658SDX NOPB Temperature Sensor Chip IC Batt Chg Li Ion 1cell 10wson
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM3658SDX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tape & Reel (TR) | Product Status: | Active |
|---|---|---|---|
| Battery Chemistry: | Lithium Ion/Polymer | Number Of Cells: | 1 |
| Current - Charging: | Constant - Programmable | Battery Pack Voltage: | 4.2V |
| Fault Protection: | Over Current, Over Temperature | Charge Current - Max: | 1A |
| High Light: | LM3658SDX NOPB,Batt Chg Li Ion 1cell 10wson,LM3658SDX Temperature Sensor Chip |
||
Product Description
LM3658SDX/NOPB Power Integrated Circuits IC Batt Chg Li-Ion 1cell 10wson
Charger IC Lithium Ion/Polymer 10-WSON (3x3)
Specifications of LM3658SDX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Battery Chargers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Current, Over Temperature |
| Charge Current - Max | 1A |
| Battery Pack Voltage | 4.2V |
| Voltage 3- Supply (Max) | 6V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-WSON (3x3) |
| Base Product Number | LM3658 |
Features of LM3658SDX/NOPB
• Integrated Power FETs with Thermal Regulation
• Charges from Either an AC Wall Adapter or USB Power Source with Automatic Source Selection
• 50 mA to 1000 mA Charge Currents Using AC Wall Adapter
• Pin-Selectable USB Charge Currents of 100 mA or 500 mA
• LDO Mode with 1A of Source Current is Automatically Invoked When the Battery is Absent and the AC Wall Adapter is Connected Continuous Battery Temperature Monitoring Built-in Multiple Safety Timers Charge Status Indication
• Continuous Over-current and Temperature Protection
• Near-depleted Battery Pre-conditioning
• Sleep Mode with Ultra Low Quiescent Current On-board Kelvin-sensing Achieves ±0.35%Termination Accuracy
• Maintenance Mode with Automatic Recharge
• Thermally Enhanced 3 mm x 3 mm WSON Package
APPLICATIONS of LM3658SDX/NOPB
Environmental & Export Classifications of LM3658SDX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
