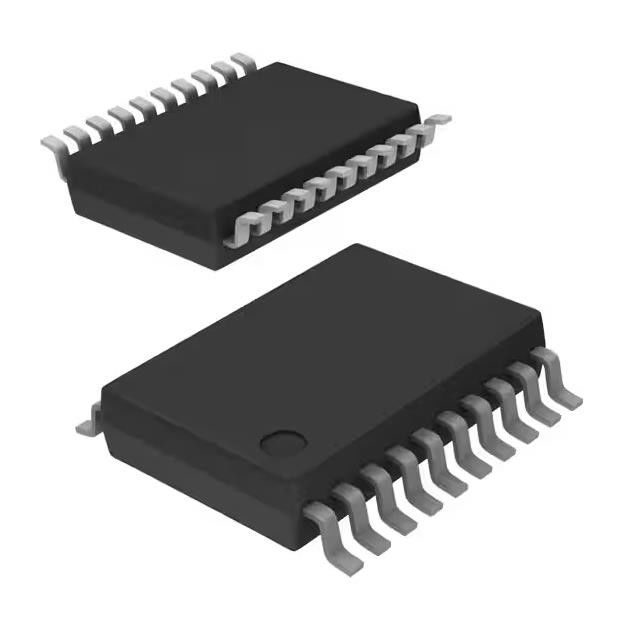

ADS8344NB/1K Integrated Power IC 16 Bit A To D Converter Sar 20ssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS8344NB/1K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Number Of Bits: | 16 |
|---|---|---|---|
| Sampling Rate (Per Second): | 100k | Number Of Inputs: | 4, 8 |
| Input Type: | Differential, Single Ended | Data Interface: | SPI |
| Configuration: | S/H-ADC | Ratio - S/H:ADC: | 1:01 |
| High Light: | ADS8344NB/1K,IC 16 Bit A To D Converter,20ssop Integrated Power IC |
||
Product Description
ADS8344NB/1K Integrated Circuits IC Adc 16bit Sar 20ssop
ADS8344NB/1K Power Integrated Circuits IC Adc 16bit Sar 20ssop
16 Bit Analog to Digital Converter 4, 8 Input 1 SAR 20-SSOP
Specifications of ADS8344NB/1K
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 4, 8 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V, 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
| Mounting Type | Surface Mount |
| Base Product Number | ADS8344 |
Features of ADS8344NB/1K
● PIN FOR PIN WITH ADS7844
● SINGLE SUPPLY: 2.7V to 5V
● 8-CHANNEL SINGLE-ENDED OR
4-CHANNEL DIFFERENTIAL INPUT
● UP TO 100kHz CONVERSION RATE
● 84dB SINAD
● SERIAL INTERFACE
● QSOP-20 AND SSOP-20 PACKAGES
APPLICATIONS of ADS8344NB/1K
● DATA ACQUISITION
● TEST AND MEASUREMENT EQUIPMENT
● INDUSTRIAL PROCESS CONTROL
● PERSONAL DIGITAL ASSISTANTS
● BATTERY-POWERED SYSTEMS
Environmental & Export Classifications of ADS8344NB/1K
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
