TPS3307 18QDRQ1 Power IC Circuit Supervisor 3 Channel 8SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS3307-18QDRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Type: | Multi-Voltage Supervisor | Number Of Voltages Monitored: | 3 |
| Voltage - Threshold: | 1.68V, 2.93V, Adj | Output: | Push-Pull, Totem Pole |
| Reset: | Active High/Active Low | Reset Timeout: | 140ms Minimum |
| High Light: | TPS3307 18QDRQ1,18QDRQ1 Power IC Circuit,Supervisor 3 Channel 8SOIC |
||
Product Description

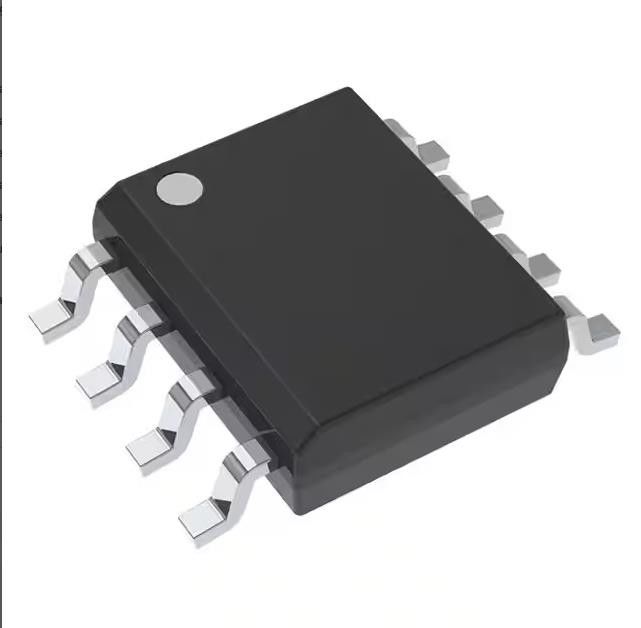

TPS3307-18QDRQ1 Power Integrated Circuits IC Supervisor 3 Channel 8soic
Supervisor Push-Pull, Totem Pole 3 Channel 8-SOIC
Specifications of TPS3307-18QDRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Supervisors | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Type | Multi-Voltage Supervisor |
| Number of Voltages Monitored | 3 |
| Voltage - Threshold | 1.68V, 2.93V, Adj |
| Output | Push-Pull, Totem Pole |
| Reset | Active High/Active Low |
| Reset Timeout | 140ms Minimum |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | TPS3307 |
Features of TPS3307-18QDRQ1
• Qualified for Automotive Applications
• ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R =0)
• Triple Supervisory Circuits for DSP and Processor-Based Systems
• Power-On Reset Generator with Fixed Delay Time of 200 ms, No External Capacitor Needed
• Temperature-Compensated Voltage
Reference
• Maximum Supply Current of 40 µA
• Supply Voltage Range . . . 2 V to 6 V
• Defined RESET Output from VDD ≥ 1.1 V
• SO-8 Package
• Temperature Range . . . −40°C to 125°C
APPLICATIONS of TPS3307-18QDRQ1
Figure 1 lists some of the typical applications for the TPS3307 family, and a schematic diagram for a processor-based system application. This application uses TI part numbers TPS3307−18 and TMS470R1Vxxx.
Environmental & Export Classifications of TPS3307-18QDRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
