TC277TP64F200NDCKXUMA3 Temperature Sensor Chip IC MCU 32BIT 4MB 292LFBGA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TC277TP64F200NDCKXUMA3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Core Processor: | TriCore™ |
|---|---|---|---|
| Core Size: | 32-Bit Tri-Core | Speed: | 200MHz |
| Program Memory Type: | FLASH | Peripherals: | DMA, POR, WDT |
| Number Of I/O: | 169 | Program Memory Size: | 4MB (4M X 8) |
| High Light: | TC277TP64F200NDCKXUMA3,IC MCU 32BIT 4MB 292LFBGA,Temperature Sensor Chip IC MCU |
||
Product Description

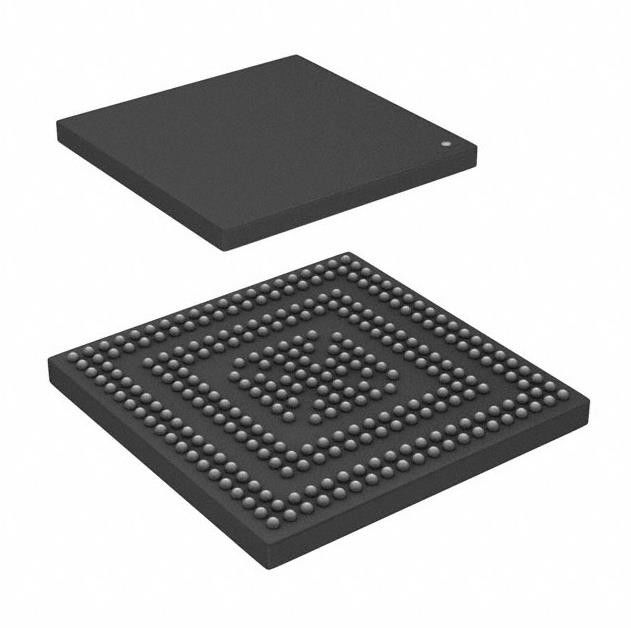

TC277TP64F200NDCKXUMA3 Integrated Circuits IC Mcu 32bit 4mb Flash 292lfbga
TriCore™ AURIX™ Microcontroller IC 32-Bit Tri-Core 200MHz 4MB (4M x 8) FLASH PG-LFBGA-292-6
Specifications of MIC5841YWM
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Infineon Technologies |
| Series | AURIX™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Core Processor | TriCore™ |
| Core Size | 32-Bit Tri-Core |
| Speed | 200MHz |
| Connectivity | ASC, CANbus, Ethernet, FlexRay, HSSL, I²C, LINbus, MSC, PSI5, QSPI, SENT |
| Peripherals | DMA, POR, WDT |
| Number of I/O | 169 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 472K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.17V ~ 5.5V |
| Data Converters | A/D 60x12b SAR, Sigma-Delta |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 292-LFBGA |
| Supplier Device Package | PG-LFBGA-292-6 |
| Base Product Number | TC277TP64 |
Features of MIC5841YWM
The TC27x product family has the following features:
• High Performance Microcontroller with three CPU cores
• Two 32-bit super-scalar TriCore CPUs (TC1.6P), each having the following features:
– Superior real-time performance
– Strong bit handling
– Fully integrated DSP capabilities
– Multiply-accumulate unit able to sustain 2 MAC operations per cycle
– Fully pipelined Floating point unit (FPU)
– up to 200 MHz operation at full temperature range
– up to 120 Kbyte Data Scratch-Pad RAM (DSPR)
– up to 32 Kbyte Instruction Scratch-Pad RAM (PSPR)
– 16 Kbyte Instruction Cache (ICACHE)
– 8 Kbyte Data Cache (DCACHE)
• Power Efficient scalar TriCore CPU (TC1.6E), having the following features:
– Binary code compatibility with TC1.6P
– up to 200 MHz operation at full temperature range
– up to 112 Kbyte Data Scratch-Pad RAM (DSPR)
– up to 24 Kbyte Instruction Scratch-Pad RAM (PSPR)
– 8 Kbyte Instruction Cache (ICACHE)
– 0.125Kbyte Data Read Buffer (DRB)
• Lockstepped shadow cores for one TC1.6P and for TC1.6E
• Multiple on-chip memories
– All embedded NVM and SRAM are ECC protected
– up to 4 Mbyte Program Flash Memory (PFLASH)
– up to 384 Kbyte Data Flash Memory (DFLASH) usable for EEPROM emulation
– 32 Kbyte Memory (LMU)
– BootROM (BROM)
• 64-Channel DMA Controller with safe data transfer
• Sophisticated interrupt system (ECC protected)
• High performance on-chip bus structure
– 64-bit Cross Bar Interconnect (SRI) giving fast parallel access between bus masters, CPUs and memories
– 32-bit System Peripheral Bus (SPB) for on-chip peripheral and functional units
– One bus bridge (SFI Bridge)
• Optional Hardware Security Module (HSM) on some variants
• Safety Management Unit (SMU) handling safety monitor alarms
• Memory Test Unit with ECC, Memory Initialization and MBIST functions (MTU)
• Hardware I/O Monitor (IOM) for checking of digital I/O
• Versatile On-chip Peripheral Units
– Four Asynchronous/Synchronous Serial Channels (ASCLIN) with hardware LIN support (V1.3, V2.0, V2.1 and J2602) up to 50 MBaud
APPLICATIONS of MIC5841YWM
• LVDSM output pads,LVDSH input pad, master mode, CL=25pF
• Medium Performance Plus Pads (MP+):
– strong sharp edge (MP+ss), CL=25pF
– strong medium edge (MP+sm), CL=50pF
– medium edge (MP+m), CL=50pF
– weak edge (MP+w), CL=50pF
• Medium Performance Pads (MP):
– strong sharp edge (MPss), CL=25pF
– strong medium edge (MPsm), CL=50pF
• Medium and Low Performance Pads (MP/LP), the identical output strength settings:
– medium edge (LP/MPm), CL=50pF
– weak edge (MPw), CL=50pF
Environmental & Export Classifications of MIC5841YWM
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
