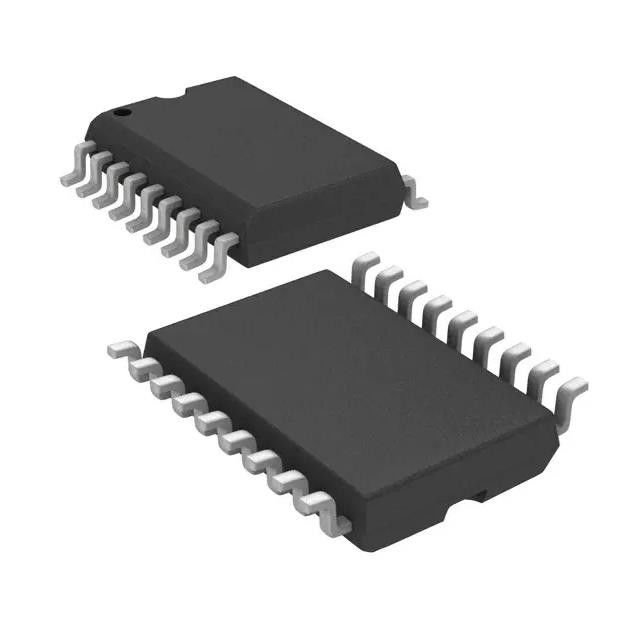

MIC5841YWM Temperature Sensor Chip IC PWR Driver Bipolar 500mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MIC5841YWM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tube | Product Status: | Active |
|---|---|---|---|
| Switch Type: | Latched Driver | Number Of Outputs: | 8 |
| Ratio - Input:Output: | 0.047222222 | Output Configuration: | Low Side |
| Output Type: | Bipolar | Interface: | Strobe, Serial |
| High Light: | MIC5841YWM Temperature Sensor Chip,MIC5841YWM PWR Driver Bipolar,500mA Temperature Sensor Chip |
||
Product Description
MIC5841YWM Power Integrated Circuits IC Pwr Driver Bipolar 1:8 18sop
Power Switch/Driver 1:8 Bipolar 500mA 18-SOP (Wide)
Specifications of MIC5841YWM
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Microchip Technology |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Switch Type | Latched Driver |
| Number of Outputs | 8 |
| Ratio - Input:Output | 1:8 |
| Output Configuration | Low Side |
| Output Type | Bipolar |
| Interface | Strobe, Serial |
| Voltage - Load | 15V (Max) |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 500mA |
| Rds On (Typ) | - |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | - |
| Operating Temperature | -55°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 18-SOP (Wide) |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) |
| Base Product Number | MIC5841 |
Features of MIC5841YWM
• 3.3 MHz Minimum Data-Input Rate
• CMOS, PMOS, NMOS, TTL Compatible
• Internal Pull-Up/Pull-Down Resistors
• Low-Power CMOS Logic and Latches
• High-Voltage Current-Sink Outputs
• Output Transient-Protection Diodes
• Single or Split Supply Operation
APPLICATIONS of MIC5841YWM
• Relay/Solenoid Driver MIC5842
• MIC5841 Hammer Driver
• MIC5841 Solenoid Driver with Output Enable
• MIC5841 Level Shifting Lamp Driver with Darlington Emitters Tied to a Negative Supply
Environmental & Export Classifications of MIC5841YWM
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
