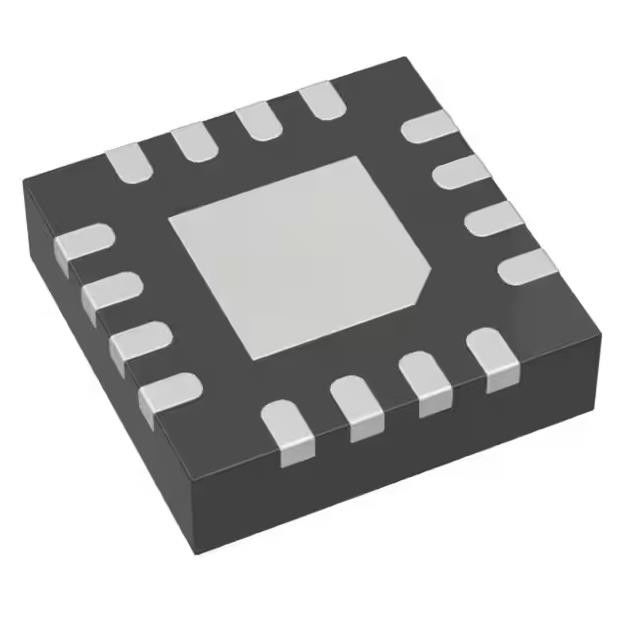

IC Reg Boost ADJ 280MA 16QFN Power Integrated Circuits LT3482IUD#TRPBF
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LT3482IUD#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Step-Up |
|---|---|---|---|
| Output Configuration: | Positive | Topology: | Boost, Charge Pump |
| Output Type: | Adjustable | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 2.5V | Voltage - Input (Max): | 16V |
| High Light: | IC Reg Boost Adj 280ma 16qfn,16QFN Power Integrated Circuits,ADJ 280MA Power Integrated Circuits |
||
Product Description
LT3482IUD#TRPBF Power Integrated Circuits IC Reg Boost Adj 280ma 16qfn
Boost, Charge Pump Switching Regulator IC Positive Adjustable 5V 1 Output 280mA (Switch) 16-WFQFN Exposed Pad
Specifications of LT3482IUD#TRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost, Charge Pump |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | 90V |
| Current - Output | 280mA (Switch) |
| Frequency - Switching | 650kHz ~ 1.1MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| Base Product Number | LT3482 |
Features of LT3482IUD#TRPBF
■ High Output Voltage: Up to 90V
■ Integrated Schottky Diodes
■ 48V, 280mA Internal Switch
■ High Side APD Current Monitor
■ Adjustable Switching Frequency: 650kHz or 1.
1MHz
■ Wide VIN Range: 2.5V to 16V
■ Surface Mount Components
■ Low Shutdown Current: <1µA
■ Soft-Start
■ Internal Compensation
■ CTRL Pin Allows Output Adjustment with No
Polarity
Inversion
■ 3mm × 3mm 16-Lead QFN Package
APPLICATIONS of LT3482IUD#TRPBF
■ APD Bias
■ PIN Diode Bias
■ Optical Receivers and Modules
■ Fiber Optic Network Equipment
Environmental & Export Classifications of LT3482IUD#TRPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
