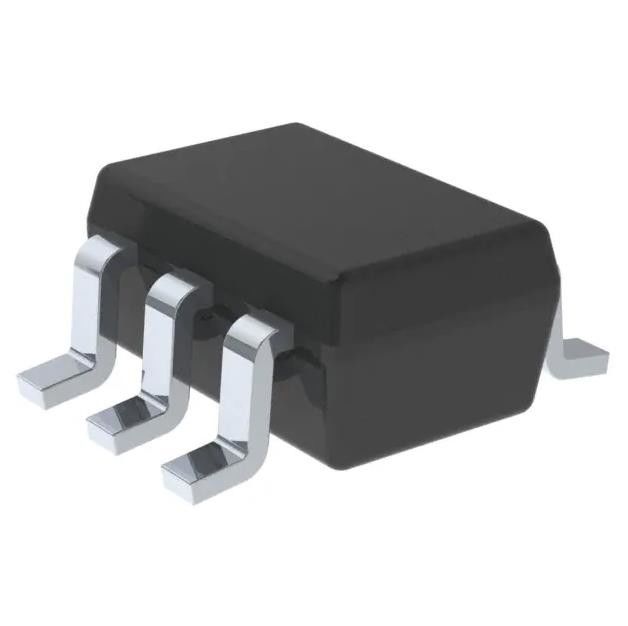

TPS61222MDCKTEP Temperature Sensor Chip Reg Boost 5V 200MA SC70-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS61222MDCKTEP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tape & Reel (TR) | Product Status: | Active |
|---|---|---|---|
| Function: | Step-Up | Output Configuration: | Positive |
| Topology: | Boost | Output Type: | Fixed |
| Number Of Outputs: | 1 | Voltage - Input (Min): | 0.7V |
| High Light: | TPS61222MDCKTEP,Reg Boost 5V 200MA SC70-6,5V 200MA Temperature Sensor Chip |
||
Product Description
TPS61222MDCKTEP Integrated Circuits IC Reg Boost 5v 200ma Sc70-6
Boost Switching Regulator IC Positive Fixed 5V 1 Output 200mA (Switch) 6-TSSOP, SC-88, SOT-363
Specifications of TPS61222MDCKTEP
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 0.7V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Current - Output | 200mA (Switch) |
| Frequency - Switching | Up to 2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
| Base Product Number | TPS612 |
Features of TPS61222MDCKTEP
• Up to 95% Efficiency at Typical Operating Conditions
• 5.5 pA Quiescent Current
• Startup Into Load at 0.7 V Input Voltage
• 5.5 pA Quiescent Current
• Startup Into Load at 0.7 V Input Voltage
• Operating input Voltage from 0.7 V to 5.5 V
• Pass-Through Function During Shutdown
• Minimum Switching • Current 200 mA
• Protections:
- Output Overvoltage
- Overtemperature
- Input Undervoltage Lockout
• Protections:
- Output Overvoltage
- Overtemperature
- Input Undervoltage Lockout
• Fixed Output Voltage Versions
• Small 6-Pin SC-70 Package
APPLICATIONS of TPS61222MDCKTEP
• Battery Powered Applications
• 1 to 3 Cell Alkaline, NiCd or NiMH
• 1 Cell Li-lon or Li-Primary
• Solar or Fuel Cell Powered Applications
• Consumer and Portable Medical Products
• Personal Care ProductsWhite or Status LEDs
• Smartphones
• Smartphones
Environmental & Export Classifications of TPS61222MDCKTEP
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
