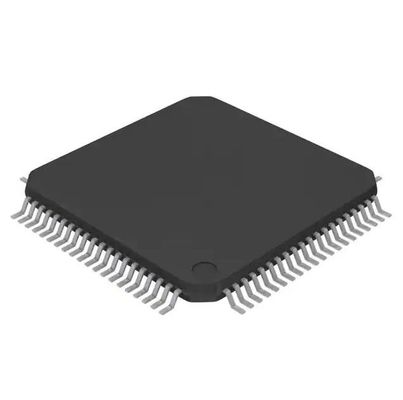

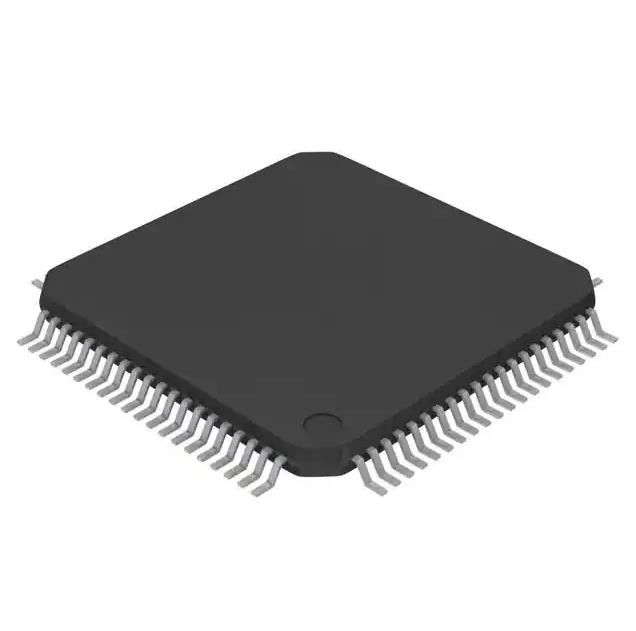

PIC24FJ256GB108T-I/PT Integrated Circuits IC Mcu 16bit 256kb Flash 80tqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PIC24FJ256GB108T-I/PT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Core Processor: | PIC |
|---|---|---|---|
| Core Size: | 16-Bit | Speed: | 32MHz |
| Connectivity: | I²C, SPI, UART/USART, USB OTG | Peripherals: | Brown-out Detect/Reset, LVD, POR, PWM, WDT |
| Number Of I/O: | 65 | Program Memory Size: | 256KB (85.5K X 24) |
Product Description
PIC24FJ256GB108T-I/PT Integrated Circuits IC Mcu 16bit 256kb Flash 80tqfp
PIC PIC® 24F Microcontroller IC 16-Bit 32MHz 256KB (85.5K x 24) FLASH 80-TQFP (12x12)
Specifications of PIC24FJ256GB108T-I/PT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Microchip Technology |
| Series | PIC® 24F |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | I²C, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, LVD, POR, PWM, WDT |
| Number of I/O | 65 |
| Program Memory Size | 256KB (85.5K x 24) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 80-TQFP |
| Supplier Device Package | 80-TQFP (12x12) |
| Base Product Number | PIC24FJ256GB108 |
Features of PIC24FJ256GB108T-I/PT
• 10-Bit, Up to 16-Channel Analog-to-Digital (A/D) Converter at 500 ksps:
- Conversions available in Sleep mode
• Three Analog Comparators with Programmable Input/ Output Configuration
• Charge Time Measurement Unit (CTMU)
Power Management of PIC24FJ256GB108T-I/PT
• On-Chip 2.5V Voltage Regulator
• Switch between Clock Sources in Real Time
• Idle, Sleep and Doze modes with Fast Wake-up and Two-Speed Start-up
• Run mode: 1 mA/MIPS, 2.0V Typical
• Sleep mode Current Down to 100 nA Typical
• Standby Current with 32 kHz Oscillator: 2.5 A, 2.0V typical
Environmental & Export Classifications of PIC24FJ256GB108T-I/PT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
