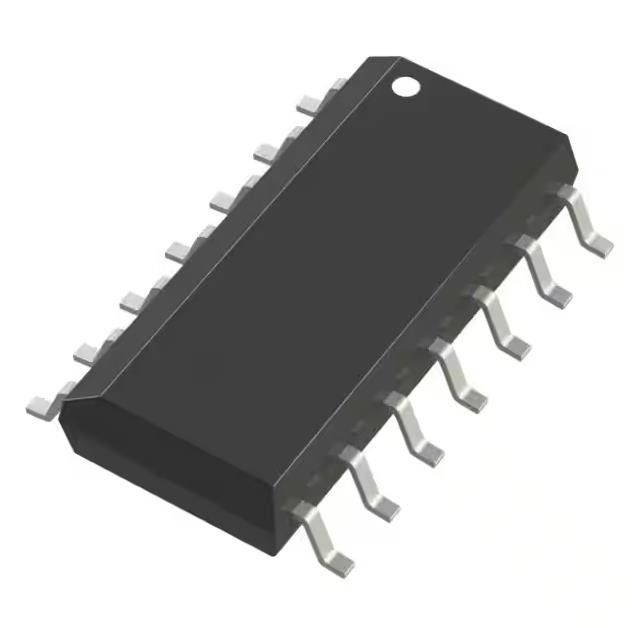

AD8574ARZ-REEL7 Integrated Circuits IC Opamp Zero-Drift 4circ 14soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AD8574ARZ-REEL7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Amplifier Type: | Zero-Drift |
|---|---|---|---|
| Number Of Circuits: | 4 | Output Type: | Rail-to-Rail |
| Slew Rate: | 0.4V/µs | Gain Bandwidth Product: | 1.5 MHz |
| Current - Input Bias: | 1 NA | Voltage - Input Offset: | 1 µV |
Product Description
AD8574ARZ-REEL7 Integrated Circuits IC Opamp Zero-Drift 4circ 14soic
Zero-Drift Amplifier 4 Circuit Rail-to-Rail 14-SOIC
Specifications of AD8574ARZ-REEL7
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Amplifier Type | Zero-Drift |
| Number of Circuits | 4 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.4V/µs |
| Gain Bandwidth Product | 1.5 MHz |
| Current - Input Bias | 1 nA |
| Voltage - Input Offset | 1 µV |
| Current - Supply | 850µA (x4 Channels) |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | AD8574 |
Features of AD8574ARZ-REEL7
• Low offset voltage: 1 μV
• Input offset drift: 0.005 μV/°C
• Rail-to-rail input and output swing
• 5 V/2.7 V single-supply operation
• High gain: 145 dB typical
• CMRR: 140 dB typical
• PSRR: 130 dB typical
• Ultralow input bias current: 10 pA typical
• Low supply current: 750 μA per op amp
• Overload recovery time: 50 μs
• No external capacitors required
Applications of AD8574ARZ-REEL7
• Temperature sensors
• Pressure sensors
• Precision current sensing
• Strain gage amplifiers
• Medical instrumentation
• Thermocouple amplifiers
Environmental & Export Classifications of AD8574ARZ-REEL7
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
