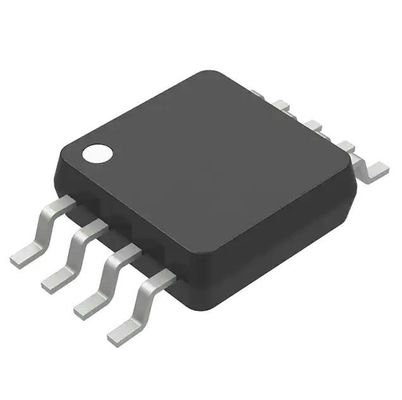

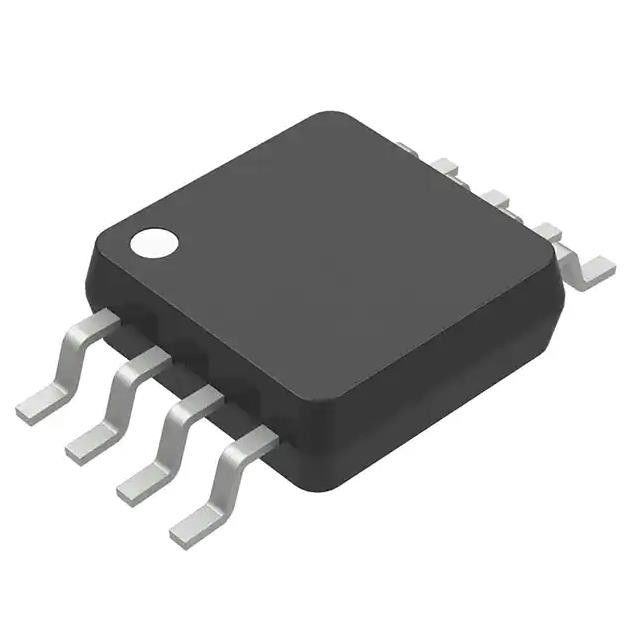

LM5009AMMX/NOPB Integrated Circuit Chip Reg Buck Adj 150ma 8vssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM5009AMMX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Step-Down |
|---|---|---|---|
| Output Configuration: | Positive | Topology: | Buck |
| Output Type: | Adjustable | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 6V | Voltage - Input (Max): | 95V |
Product Description
LM5009AMMX/NOPB Integrated Circuit Chip Reg Buck Adj 150ma 8vssop
Buck Switching Regulator IC Positive Adjustable 2.5V 1 Output 150mA 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Specifications of LM5009AMMX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 6V |
| Voltage - Input (Max) | 95V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | 85V |
| Current - Output | 150mA |
| Frequency - Switching | 50kHz ~ 1.1MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | LM5009 |
Features of LM5009AMMX/NOPB
• Operating Input Voltage Range: 6 V to 95 V
• Integrated 100-V, N-Channel Buck Switch
• Internal Start-Up Regulator
• No Loop Compensation Required
• Ultra-Fast Transient Response
• ON Time Varies Inversely With Input Voltage
• Operating Frequency Remains Constant With Varying Line Voltage and Load Current
• Adjustable Output Voltage From 2.5 V
• Highly Efficient Operation
• Precision Internal Reference
• Low Bias Current
• Intelligent Current Limit
• Thermal Shutdown
• 8-Pin VSSOP and 8-Pin WSON (4 mm × 4 mm) Packages
Applications of LM5009AMMX/NOPB
• Non-Isolated Telecommunication Buck Regulator
• Secondary High-Voltage Post Regulator
• 42-V Automotive Systems
Environmental & Export Classifications of LM5009AMMX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
