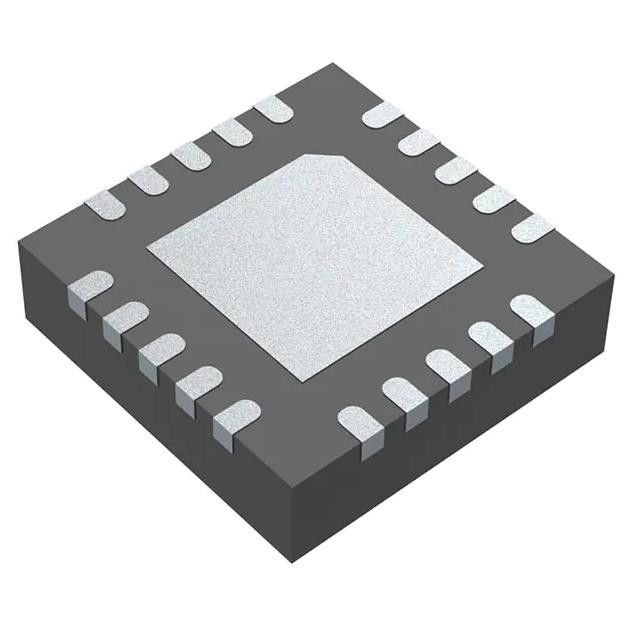

TPS51216RUKR Temperature Sensor Chip IC REG CTRLR DDR 2OUT 20WQFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS51216RUKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Auto Retry | Number Of Channels: | 1 |
|---|---|---|---|
| Internal Switch(s): | No | Applications: | General Purpose |
| Voltage - Supply: | 9V ~ 80V | Operating Temperature: | -40°C ~ 85°C |
| Current - Supply: | 1 MA | Programmable Features: | Current Limit, Fault Timeout, UVLO |
Product Description
TPS51216RUKR Temperature Sensor Chip IC REG CTRLR DDR 2OUT 20WQFN
D-CAP™ Controller, DDR Voltage Regulator IC 2 Output 20-WQFN (3x3)
Specifications of TPS51216RUKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Special Purpose Regulators | |
| Mfr | Texas Instruments |
| Series | D-CAP™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Applications | Controller, DDR |
| Voltage - Input | 4.5V ~ 5.5V |
| Number of Outputs | 2 |
| Voltage - Output | 0.7V ~ 1.8V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-WQFN (3x3) |
| Base Product Number | TPS51216 |
Features of TPS51216RUKR
• Synchronous Buck Controller (VDDQ)
– Conversion Voltage Range: 3 V to 28 V
– Output Voltage Range: 0.7 V to 1.8 V
– 0.8% V-REF Accuracy
– D-CAP™ Mode for Fast Transient Response
– Selectable 300 kHz/400 kHz Switching Frequencies
– Optimized Efficiency at Light and Heavy Loads with Auto-skip Function
– Supports Soft-Off in S4/S5 States
– OCL/OVP/UVP/UVLO Protections
– Powergood Output
• 2-A LDO(VTT), Buffered Reference(VTTREF)
– 2-A (Peak) Sink and Source Current
– Requires Only 10-μF of Ceramic Output Capacitance
– Buffered, Low Noise, 10-mA VTTREF Output
– 0.8% VTTREF, 20-mV VTT Accuracy
– Support High-Z in S3 and Soft-Off in S4/S5
• Thermal Shutdown
• 20-Pin, 3 mm × 3 mm, QFN Package
– Conversion Voltage Range: 3 V to 28 V
– Output Voltage Range: 0.7 V to 1.8 V
– 0.8% V-REF Accuracy
– D-CAP™ Mode for Fast Transient Response
– Selectable 300 kHz/400 kHz Switching Frequencies
– Optimized Efficiency at Light and Heavy Loads with Auto-skip Function
– Supports Soft-Off in S4/S5 States
– OCL/OVP/UVP/UVLO Protections
– Powergood Output
• 2-A LDO(VTT), Buffered Reference(VTTREF)
– 2-A (Peak) Sink and Source Current
– Requires Only 10-μF of Ceramic Output Capacitance
– Buffered, Low Noise, 10-mA VTTREF Output
– 0.8% VTTREF, 20-mV VTT Accuracy
– Support High-Z in S3 and Soft-Off in S4/S5
• Thermal Shutdown
• 20-Pin, 3 mm × 3 mm, QFN Package
Applications of TPS51216RUKR
• DDR2/DDR3/DDR3L Memory Power Supplies
• SSTL_18, SSTL_15, SSTL_135 and HSTL Termination
Environmental & Export Classifications of TPS51216RUKR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
