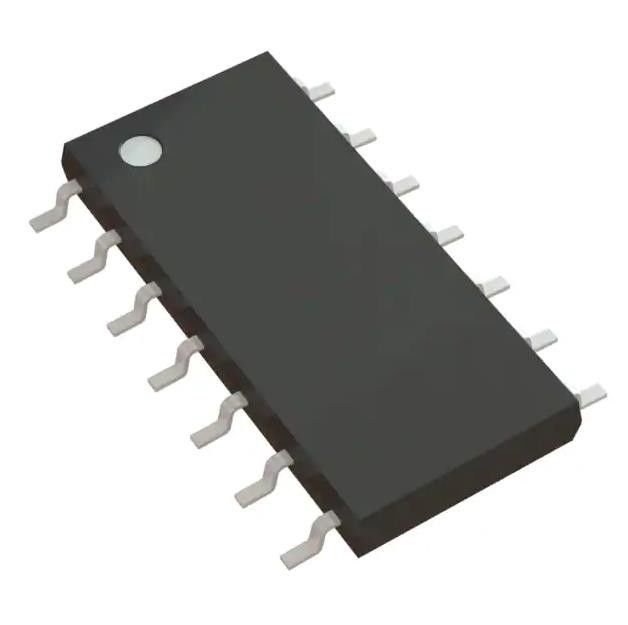

TS914IYDT Temperature Sensor Chip CMOS Amplifier 4 Circuit Rail-to-Rail 14-SO
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TS914IYDT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Slew Rate: | 1V/µs | Gain Bandwidth Product: | 1.4 MHz |
|---|---|---|---|
| Current - Input Bias: | 1 PA | Voltage - Input Offset: | 10 MV |
| Current - Supply: | 230µA | Current - Output / Channel: | 60 MA |
| Voltage - Supply Span (Min): | 2.7 V | Voltage - Supply Span (Max): | 16 V |
Product Description
TS914IYDT Temperature Sensor Chip CMOS Amplifier 4 Circuit Rail-to-Rail 14-SO
IC CMOS 4 CIRCUIT 14SO
Specifications of TS914IYDT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | STMicroelectronics |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Amplifier Type | CMOS |
| Number of Circuits | 4 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1V/µs |
| Gain Bandwidth Product | 1.4 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 10 mV |
| Current - Supply | 230µA |
| Current - Output / Channel | 60 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 16 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SO |
| Base Product Number | TS914 |
Features of TS914IYDT
■ Rail-to-rail input and output voltage ranges
■ Single (or dual) supply operation from 2.7 to 16 V
■ Extremely low input bias current: 1 pA typical
■ Low input offset voltage: 5 mV max. (A grade)
■ Specified for 600 Ω and 100 Ω loads
■ Low supply current: 200 μA/ampli. (VCC = 3 V)
■ Latch-up immunity
■ Spice macromodel included in this specification
■ Single (or dual) supply operation from 2.7 to 16 V
■ Extremely low input bias current: 1 pA typical
■ Low input offset voltage: 5 mV max. (A grade)
■ Specified for 600 Ω and 100 Ω loads
■ Low supply current: 200 μA/ampli. (VCC = 3 V)
■ Latch-up immunity
■ Spice macromodel included in this specification
Description of TS914IYDT
The TS914 device is a rail-to-rail CMOS quad operational amplifier designed to operate with a single or dual supply voltage.
Environmental & Export Classifications of TS914IYDT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
