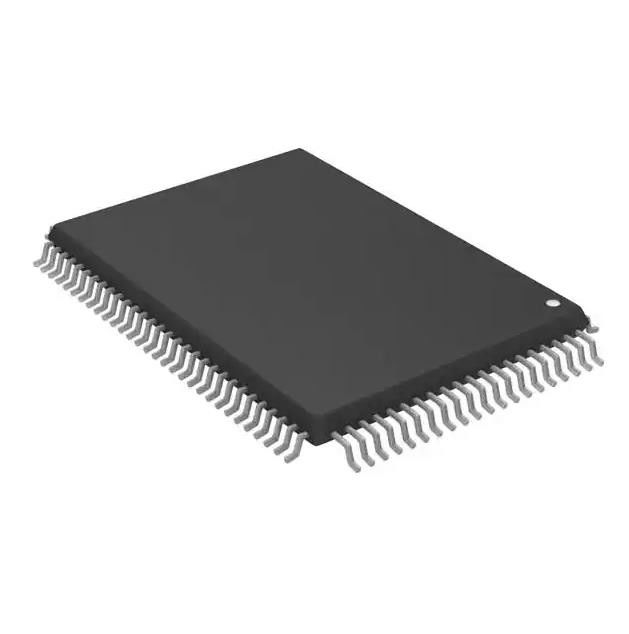

XC9572-10PQ100C IC CPLD 72MC 10NS 100QFP Complex Programmable Logic Device
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | XC9572-10PQ100C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | XC9572-10PQ100C | Delay Time Tpd(1) Max: | 10 Ns |
|---|---|---|---|
| Voltage Supply - Internal: | 4.75V ~ 5.25V | Number Of Logic Elements/Blocks: | 4 |
| Number Of Macrocells: | 72 | Number Of Gates: | 1600 |
| Number Of I/O: | 72 | Operating Temperature: | 0°C ~ 70°C (TA) |
| High Light: | XC9572 10PQ100C,IC CPLD 72MC 10NS 100QFP,100QFP Complex Programmable Logic Device |
||
Product Description
XC9572-10PQ100C IC CPLD 72MC 10NS 100QFP I/O 72 0°C ~ 70°C 10 ns
IC CPLD 72MC 10NS 100QFP
The XC9572 is a high-performance CPLD providing advanced in-system programming and test capabilities for
general purpose logic integration. It is comprised of eight 36V18 Function Blocks, providing 1,600 usable gates with
propagation delays of 7.5 ns. See Figure 2 for the architecture overview.
Features of XC9572-10PQ100C
• 7.5 ns pin-to-pin logic delays on all pins
• fCNT to 125 MHz
• 72 macrocells with 1,600 usable gates
• Up to 72 user I/O pins
• 5V in-system programmable
- Endurance of 10,000 program/erase cycles
- Program/erase over full commercial voltage and temperature range
• Enhanced pin-locking architecture
• Flexible 36V18 Function Block
- 90 product terms drive any or all of 18 macrocells within Function Block
- Global and product term clocks, output enables, set and reset signals
Specifications of XC9572-10PQ100C
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Embedded
CPLDs (Complex Programmable Logic Devices)
|
|
Mfr
|
AMD
|
|
Series
|
XC9500
|
| Package | Tray |
|
Product
|
XC9572-10PQ100C
|
|
Digi-Key Programmable
|
Not Verified
|
|
Programmable Type
|
In System Programmable (min 10K program/erase cycles)
|
|
Delay Time tpd(1) Max
|
10 ns
|
|
Voltage Supply - Internal
|
4.75V ~ 5.25V
|
|
Number of Logic Elements/Blocks
|
4
|
|
Number of Macrocells
|
72
|
|
Number of Gates
|
1600
|
|
Number of I/O
|
72
|
|
Operating Temperature
|
0°C ~ 70°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
100-BQFP
|
|
Supplier Device Package
|
100-PQFP (20x14)
|
|
Base Product Number
|
XC9572
|
Other features of XC9572-10PQ100C
• Extensive IEEE Std 1149.1 boundary-scan (JTAG) support
• Programmable power reduction mode in each macrocell
• Slew rate control on individual outputs
• User programmable ground pin capability
• Extended pattern security features for design protection
• High-drive 24 mA outputs
• 3.3V or 5V I/O capability
• Advanced CMOS 5V FastFLASH™ technology
• Supports parallel programming of more than one XC9500 concurrently
• Available in 44-pin PLCC, 84-pin PLCC, 100-pin PQFP, and 100-pin TQFP packages
range (−10 ̊
Environmental & Export Classifications of XC9572-10PQ100C
with avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Additional Resources of XC9572-10PQ100C
| ATTRIBUTE | DESCRIPTION |
|---|---|
| Other Names | 122-1174 |
| Standard Package | 66 |
