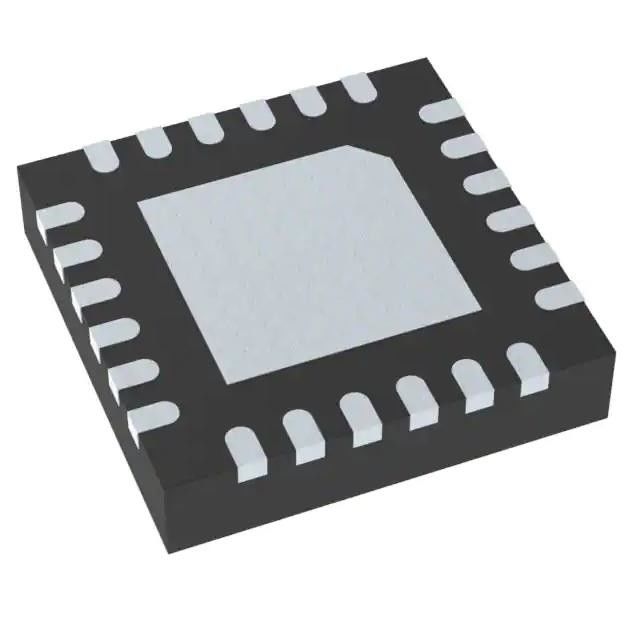

24VQFN 4.5A Li Ion Charger IC BQ24195RGET Surface Mount
Product Details:
| Place of Origin: | Original |
| Brand Name: | TI |
| Certification: | Original |
| Model Number: | BQ24195RGET |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | BQ24195RGET | Number Of Cells: | 1 |
|---|---|---|---|
| Charge Current - Max: | 4.5A | Battery Pack Voltage: | 4.2V |
| Voltage - Supply (Max): | 17V | Interface: | I²C |
| Operating Temperature: | -40°C ~ 85°C (TA) | Package / Case: | 24-VFQFN Exposed Pad |
| High Light: | 4.5A Li Ion Charger IC,24VQFN Li Ion Charger IC,BQ24195RGET |
||
Product Description
BQ24195RGET Power Management ICs BATT CHG LI-ION 1CELL 24VQFN 4.5A
Charger IC Lithium Ion/Polymer 24-VQFN (4x4)
Features of BQ24195RGET
• High Efficiency Switch Mode Charger
– 2.5-A (bq24195L) or 4.5-A (bq24195) Fast Charging
– 92% Charge Efficiency at 2 A, 90% at 4 A
• Synchronous Boost Converter in Battery Boost Mode
– 5.1 V at 1 A (bq24195L) or 5.1 V at 2.1 A(bq24195)
– 94% 5.1-V Boost Efficiency at 1 A, 91% at 2.1 A
• Highest Battery Discharge Efficiency with 12-mΩ Battery Discharge MOSFET up to 9-A Discharge Current
• Single Input USB-compliant/Adapter Charger
– USB Host or Charging Port D+/D- Detection
Compatible to USB Battery Charger Spec 1.2
– Input Voltage and Current Limit Supports USB2.0 • Tablet PC and Smart Phone and USB3.0
– Input Current Limit: 100 mA, 150 mA, 500 mA, 900 mA, 1.2 A, 1.5 A, 2 A and 3 A
• 3.9-V to 17-V Input Operating Voltage Range
– Support All Kinds of Adapter with Input Voltage DPM Regulation
• Narrow VDC (NVDC) Power Path Management
– Instant-on Works with No Battery or Deeply Discharged Battery
– Ideal Diode Operation in Battery Supplement Mode
Specifications of BQ24195RGET
|
Mfr
|
Texas Instruments
|
|
Series
|
-
|
|
Product
|
BQ24195RGET
|
|
Battery Chemistry
|
Lithium Ion/Polymer
|
|
Number of Cells
|
1
|
|
Current - Charging
|
Constant - Programmable
|
|
Programmable Features
|
-
|
|
Fault Protection
|
Over Current, Over Temperature, Over Voltage
|
|
Charge Current - Max
|
4.5A
|
|
Battery Pack Voltage
|
4.2V
|
|
Voltage - Supply (Max)
|
17V
|
|
Interface
|
I²C
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
24-VFQFN Exposed Pad
|
|
Supplier Device Package
|
24-VQFN (4x4)
|
|
Base Product Number
|
BQ24195
|
range (−10 ̊
Environmental & Export Classifications
with avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
APPLICATIONS of BQ24195RGET
• Power Bank for Smartphone, Tablet
• Tablet PC and Smart Phone
• Portable Audio Speaker
• Portable Media Players
• Internet Devices
