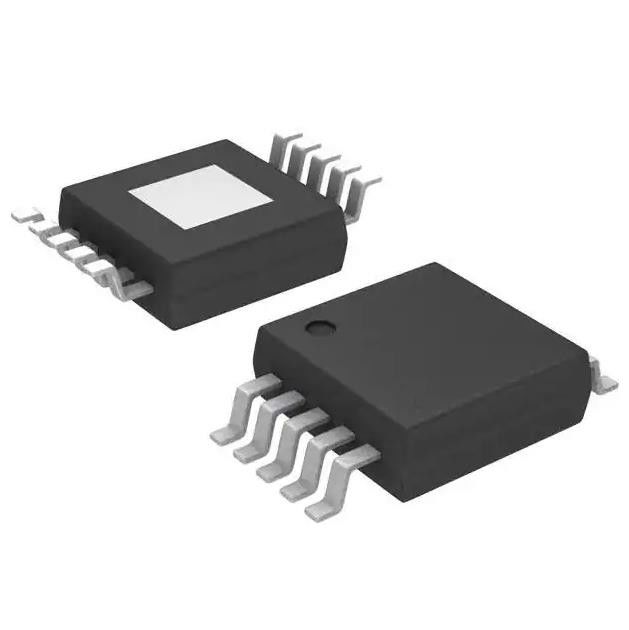

10MSOP 1A 6.45V Li Ion Battery Charger IC BQ24092DGQR Li Ion Charger IC
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | BQ24092DGQR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | BQ24092DGQR | Charge Current - Max: | 1A |
|---|---|---|---|
| Battery Pack Voltage: | 4.2V | Interface: | USB |
| Operating Temperature: | 0°C ~ 125°C (TJ) | Mounting Type: | Surface Mount |
| Supplier Device Package: | 10-HVSSOP | Battery Chemistry: | Lithium Ion/Polymer |
| High Light: | 6.45V Li Ion Battery Charger IC,10MSOP Li Ion Battery Charger IC,BQ24092DGQR |
||
Product Description
BQ24092DGQR SMD LED Chip IC BATT CHG LI-ION 1CELL 10MSOP 1A 6.45V
Isolated Module 16 b 78k LVDS - Serial 16-SOIC
The BQ2409x series of devices are highly integrated Li-ion and Li-Pol linear chargers devices targete at space-limited portable applications.
Features of BQ24092DGQR
Charging
– 1% charge voltage accuracy
– 10% charge current accuracy
– Pin selectable USB 100-mA and 500-mA
maximum input current limit
– Programmable termination and precharge
threshold
• Protection
– 6.6-V overvoltage protection
– Input voltage dynamic power management
– 125°C thermal regulation; 150°C thermal
shutdown protection
– OUT short-circuit protection and ISET short
detection
– Operation over JEITA range via battery NTC
– ½ fast-charge-current at cold, 4.06 V at hot,
BQ092/3
– Fixed 10-hour safety timer
• System
– Automatic Termination and Timer Disable Mode
(TTDM) for absent battery pack with thermistor
– Status indication – charging/done
– Available in a small 10-pin MSOP package
Product Attributes of BQ24092DGQR
|
Series
|
-
|
|
Product
|
BQ24092DGQR
|
|
Battery Chemistry
|
Lithium Ion/Polymer
|
|
Number of Cells
|
1
|
|
Current - Charging
|
Constant - Programmable
|
|
Programmable Features
|
Current
|
|
Fault Protection
|
Over Temperature, Over Voltage, Short Circuit
|
|
Charge Current - Max
|
1A
|
|
Battery Pack Voltage
|
4.2V
|
|
Voltage - Supply (Max)
|
6.45V
|
|
Interface
|
USB
|
|
Operating Temperature
|
0°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width)
|
|
Supplier Device Package
|
10-HVSSOP
|
|
Base Product Number
|
BQ24092
|
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Applications of BQ24092DGQR
• Smart phones
• PDAs
• MP3 players
• Low-power handheld devices
