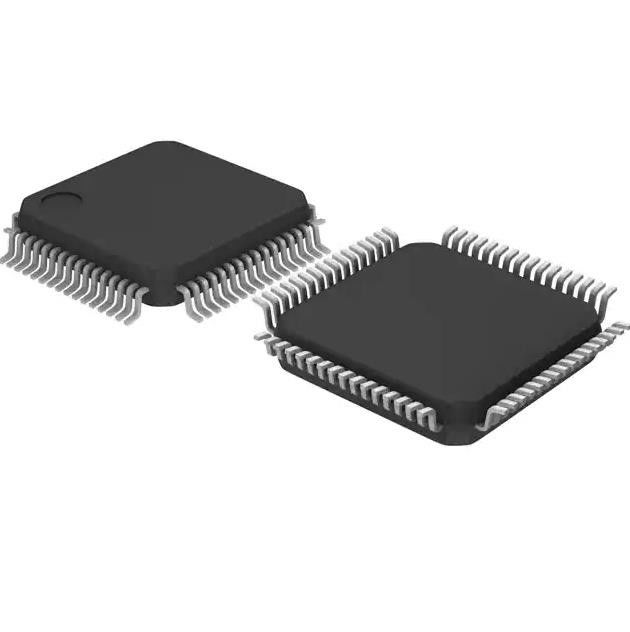

STM32F100RDT6B DIP IC Sockets IC MCU 32BIT 384KB FLASH 64LQFP 2V ~ 3.6V
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | STM32F100RDT6B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | STM32F100RDT6B | Core Size: | 32-Bit Single-Core |
|---|---|---|---|
| Connectivity: | I²C, IrDA, LINbus, SPI, UART/USART | Number Of I/O: | 51 |
| Program Memory Size: | 384KB (384K X 8) | RAM Size: | 32K X 8 |
| Voltage - Supply (Vcc/Vdd): | 2V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
STM32F100RDT6B DIP IC Sockets IC MCU 32BIT 384KB FLASH 64LQFP 2V ~ 3.6V
ARM® Cortex®-M3 STM32F1 Microcontroller IC 32-Bit Single-Core 24MHz 384KB (384K x 8) FLASH 64-LQFP (10x10)
The STM32F100 Value Line family includes devices in three different packages ranging from 64 pins to 144 pins.
Features of STM32F100RDT6B
• Up to 16 timers
– Up to seven 16-bit timers, each with up to 4
IC/OC/PWM or pulse counter
– One 16-bit, 6-channel advanced-control
timer: up to 6 channels for PWM output,
dead time generation and emergency stop
– One 16-bit timer, with 2 IC/OC, 1
OCN/PWM, dead-time generation and
emergency stop
– Two 16-bit timers, each with
IC/OC/OCN/PWM, dead-time generation
and emergency stop
– Two watchdog timers
– SysTick timer: 24-bit downcounter
– Two 16-bit basic timers to drive the DAC
• Up to 11 communications interfaces
– Up to two I2C interfaces (SMBus/PMBus)
– Up to 3 USARTs (ISO 7816 interface, LIN,
IrDA capability, modem control)
– Up to 2 UARTs
– Up to 3 SPIs (12 Mbit/s)
– Consumer electronics control (CEC) I/F
• CRC calculation unit, 96-bit unique ID
Specifications of STM32F100RDT6B
|
Mfr
|
STMicroelectronics
|
|
Series
|
STM32F1
|
|
Product
|
STM32F100RDT6B
|
|
Core Processor
|
ARM® Cortex®-M3
|
|
Core Size
|
32-Bit Single-Core
|
|
Speed
|
24MHz
|
|
Connectivity
|
I²C, IrDA, LINbus, SPI, UART/USART
|
|
Peripherals
|
DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT
|
|
Number of I/O
|
51
|
|
Program Memory Size
|
384KB (384K x 8)
|
|
Program Memory Type
|
FLASH
|
|
EEPROM Size
|
-
|
|
RAM Size
|
32K x 8
|
|
Voltage - Supply (Vcc/Vdd)
|
2V ~ 3.6V
|
|
Data Converters
|
A/D 16x12b; D/A 2x12b
|
|
Oscillator Type
|
Internal
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
64-LQFP
|
|
Supplier Device Package
|
64-LQFP (10x10)
|
|
Base Product Number
|
STM32F100
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
