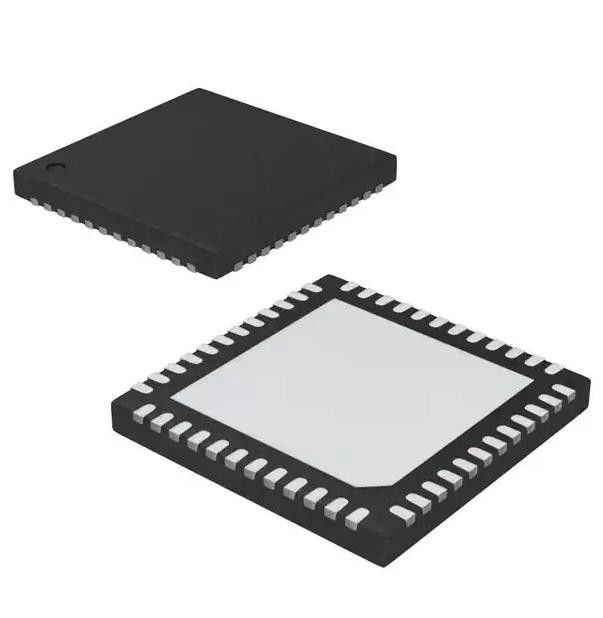

RAA2270634GNP#MA0 Half-Bridge Gate Driver IC Non-Inverting 48-QFN (7x7)
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | RAA2270634GNP#MA0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | RAA2270634GNP#MA0 | Channel Type: | 3-Phase |
|---|---|---|---|
| Number Of Drivers: | 3 | Voltage - Supply: | 4.5V ~ 60V |
| Rise / Fall Time (Typ): | 40ns, 40ns | Operating Temperature: | -40°C ~ 125°C (TA) |
| Supplier Device Package: | 48-QFN (7x7) | Current - Peak Output (Source, Sink): | 1A, 2A |
Product Description
RAA2270634GNP#MA0 Half-Bridge Gate Driver IC Non-Inverting 48-QFN (7x7)
THREE PHASE 60V MOTOR DRIVER, 7X
Features of RAA2270634GNP#MA0
▪ Wide VIN range: 4.5V to 60V (65V abs max)
▪ Switching frequency range up to 200kHz
▪ 3-Phase drive for BLDC application
• Peak 1A/2A source/sink current with
programmable drive strength
• Supports 8 adjustable levels of drive strength
through hardware interface and 16 adjustable
levels of drive strength through SPI interface
▪ Adaptive and adjustable dead time
▪ Fully integrated power supply architecture
• Two VCC LDOs allow for Sleep mode low IQ
• 500mA buck-boost switching regulator
generates drive voltage (5V to 15V adjustable)
• 200mA adjustable output LDO for MCU supplies
▪ Flexible configuration
• 3-phase HI/LI mode and 3-phase PWM mode
• Support half-bridge, full-bridge configuration
▪ Three current sense amplifiers
• Four levels of sense gain setting
• Supports DC offset calibration during power-up
and on-the-fly
• Supports both ground-side shunt sense or
low-side MOSFET rDS(ON) sense
▪ Back-EMF sensing for BLDC sensorless operation
Specifications of RAA2270634GNP#MA0
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Gate Drivers
|
|
Mfr
|
Renesas Electronics America Inc
|
|
Series
|
-
|
|
Product
|
RAA2270634GNP#MA0
|
|
Driven Configuration
|
Half-Bridge
|
|
Channel Type
|
3-Phase
|
|
Number of Drivers
|
3
|
|
Gate Type
|
N-Channel MOSFET
|
|
Voltage - Supply
|
4.5V ~ 60V
|
|
Logic Voltage - VIL, VIH
|
-
|
|
Current - Peak Output (Source, Sink)
|
1A, 2A
|
|
Input Type
|
Non-Inverting
|
|
Rise / Fall Time (Typ)
|
40ns, 40ns
|
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
48-WFQFN Exposed Pad
|
|
Supplier Device Package
|
48-QFN (7x7)
|
|
Base Product Number
|
RAA2270634
|
Applications of RAA2270634GNP#MA0
▪ Power tools, fans, pumps, E-bikes
▪ Industrial automation, robotics, drones
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
