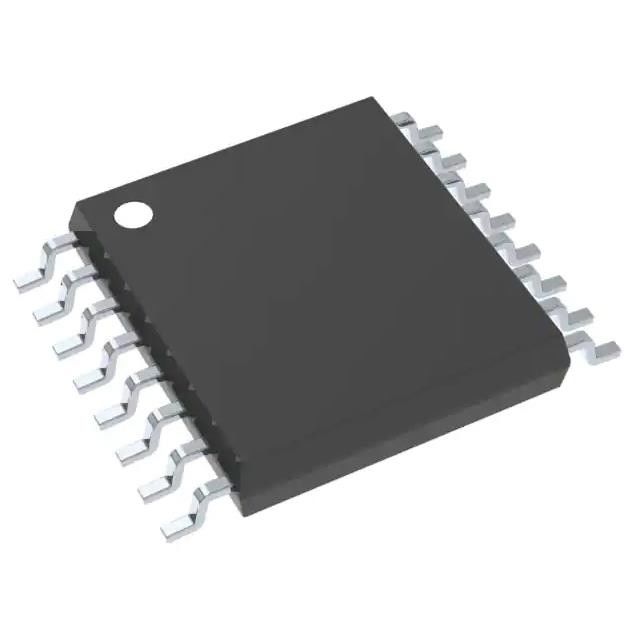

ADC108S022CIMTX / NOPB 10 Bit Digital Converter 8 Input 1 SAR 16-TSSOP
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ADC108S022CIMTX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | ADC108S022CIMTX/NOPB | Number Of Bits: | 8 |
|---|---|---|---|
| Voltage - Supply, Analog: | 2.7V ~ 5.25V | Voltage - Supply, Digital: | 2.7V ~ 5.25V |
| Operating Temperature: | -40°C ~ 85°C | Ratio - S/H:ADC: | 1:1 |
Product Description
ADC108S022CIMTX / NOPB 10 Bit Digital Converter 8 Input 1 SAR 16-TSSOP
10 Bit Analog to Digital Converter 8 Input 1 SAR 16-TSSOP
Features of ADC108S022CIMTX/NOPB
• Eight Input Channels
• Variable Power Management
• Independent Analog and Digital Supplies
• SPI/QSPI/MICROWIRE/DSP compatible
• Packaged in 16-Lead TSSOP
Specifications of ADC108S022CIMTX/NOPB
|
Product
|
ADC108S022CIMTX/NOPB
|
|
Number of Bits
|
10
|
|
Sampling Rate (Per Second)
|
200k
|
|
Number of Inputs
|
8
|
|
Input Type
|
Single Ended
|
|
Data Interface
|
SPI, DSP
|
|
Configuration
|
MUX-S/H-ADC
|
|
Ratio - S/H:ADC
|
1:1
|
|
Number of A/D Converters
|
1
|
|
Architecture
|
SAR
|
|
Reference Type
|
Supply
|
|
Voltage - Supply, Analog
|
2.7V ~ 5.25V
|
|
Voltage - Supply, Digital
|
2.7V ~ 5.25V
|
|
Features
|
-
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
Package / Case
|
16-TSSOP (0.173", 4.40mm Width)
|
|
Supplier Device Package
|
16-TSSOP
|
|
Mounting Type
|
Surface Mount
|
|
Base Product Number
|
ADC108S022
|
range (−10 ̊
Environmental & Export Classifications
wh avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Applications of ADC108S022CIMTX/NOPB
• Automotive Navigation
• Portable Systems interfaces.
• Medical Instruments
• Mobile Communications analog and digital supplies.
• Instrumentation and Control Systems
