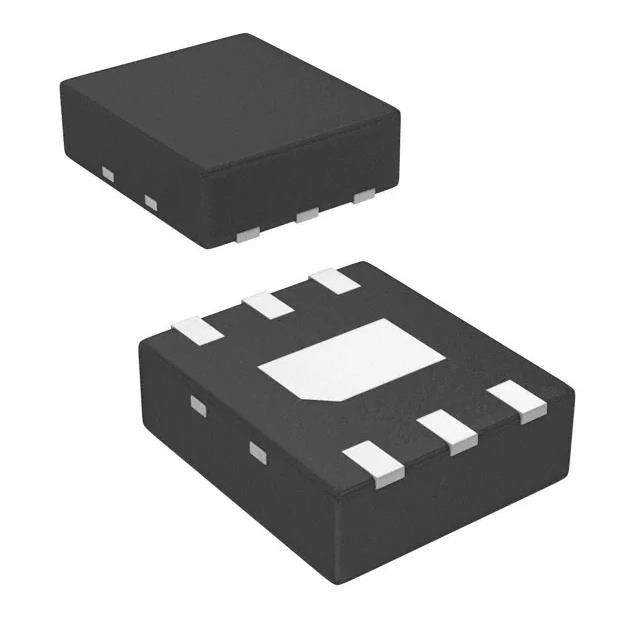

ADC081S021CISD 8 Bit Analog to Digital Converter 1 Input 1 SAR 6-WSON
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ADC081S021CISD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | ADC081S021CISD | Number Of Bits: | 8 |
|---|---|---|---|
| Voltage - Supply, Analog: | 2.7V ~ 5.25V | Voltage - Supply, Digital: | 2.7V ~ 5.25V |
| Operating Temperature: | -40°C ~ 85°C | Ratio - S/H:ADC: | 1:1 |
Product Description
ADC081S021CISD 8 Bit Analog to Digital Converter 1 Input 1 SAR 6-WSON
8 Bit Analog to Digital Converter 1 Input 1 SAR 6-WSON (2.2x2.5)
Features of ADC081S021CISD
Specified Over a Range of sample Rates.
6-lead WSON and SOT-23 Packages
Variable Power Management
Single Power Supply with 2.7V-5.25V Range
SPITM/QSPITM/MICROWIRE/DSP Compatible
Specifications of ADC081S021CISD
|
Product
|
ADC081S021CISD
|
|
Number of Bits
|
8
|
|
Sampling Rate (Per Second)
|
200k
|
|
Number of Inputs
|
1
|
|
Input Type
|
Single Ended
|
|
Data Interface
|
SPI, DSP
|
|
Configuration
|
S/H-ADC
|
|
Ratio - S/H:ADC
|
1:1
|
|
Number of A/D Converters
|
1
|
|
Architecture
|
SAR
|
|
Reference Type
|
Supply
|
|
Voltage - Supply, Analog
|
2.7V ~ 5.25V
|
|
Voltage - Supply, Digital
|
2.7V ~ 5.25V
|
|
Features
|
-
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Package / Case
|
6-WDFN Exposed Pad
|
|
Supplier Device Package
|
6-WSON (2.2x2.5)
|
|
Mounting Type
|
Surface Mount
|
|
Base Product Number
|
ADC081
|
range (−10 ̊
Environmental & Export Classifications
wh avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Applications of ADC081S021CISD
• Portable Systems
• Remote Data Acquisition T
• Instrumentation and Control Systems
