1P1G125QDCKRG4Q1 1 Element 1 Bit per Element 3-State Output SC-70-5
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | 1P1G125QDCKRG4Q1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | 1P1G125QDCKRG4Q1 | Output Type: | 3-State |
|---|---|---|---|
| Current - Output High, Low: | 24mA, 24mA | Voltage - Supply: | 1.65V ~ 5.5V |
| Operating Temperature: | -40°C ~ 125°C (TA) | Number Of Elements: | 1 |
Product Description

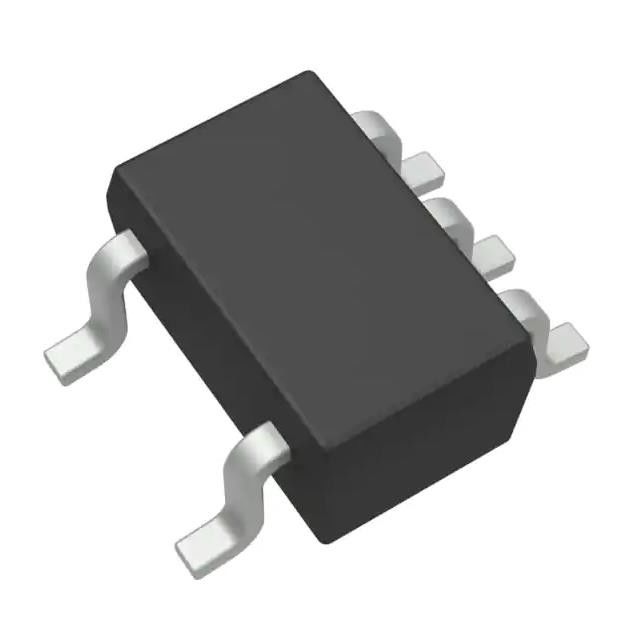

1P1G125QDCKRG4Q1 1 Element 1 Bit per Element 3-State Output SC-70-5
Buffer, Non-Inverting 1 Element 1 Bit per Element 3-State Output SC-70-5
Features of 1P1G125QDCKRG4Q1
• AEC-Q100 Qualified With the Following Results:
– Device Temperature Grade 1: –40°C to +125°C
Ambient Operating Temperature Range
– Device Human-Body Model (HBM) ESD
Classification Level 2
– Device Charged-Device Model (CDM) ESD
Classification Level C5
• Available in the small 1.45-mm2
package (DRY) With 0.5-mm Pitch
• Supports 5-V VCC Operation
• Over-voltage tolerant inputs accept
voltages to 5.5 V
• Provides down translation to VCC
• Max tpd of 3.7 ns at 3.3 V
• Low power consumption, 10-μA Max ICC
• ±24-mA Output drive at 3.3 V
• Ioff supports live insertion, partial-power-down
mode, and back-drive protection
• Latch-up performance exceeds 100 mA
Per JESD 78, Class II
Specifications of 1P1G125QDCKRG4Q1
|
Product
|
1P1G125QDCKRG4Q1
|
|
Logic Type
|
Buffer, Non-Inverting
|
|
Number of Elements
|
1
|
|
Number of Bits per Element
|
1
|
|
Input Type
|
-
|
|
Output Type
|
3-State
|
|
Current - Output High, Low
|
24mA, 24mA
|
|
Voltage - Supply
|
1.65V ~ 5.5V
|
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
5-TSSOP, SC-70-5, SOT-353
|
|
Supplier Device Package
|
SC-70-5
|
|
Base Product Number
|
1P1G125
|
range (−10 ̊
Environmental & Export Classifications
wh avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Applications of 1P1G125QDCKRG4Q1
• Qualified for Automotive Applications
• Increase digital signal drive strength
• Redrive up to 100 MHz square wave signals
• Enable or disable a digital signal with highimpedance off state
