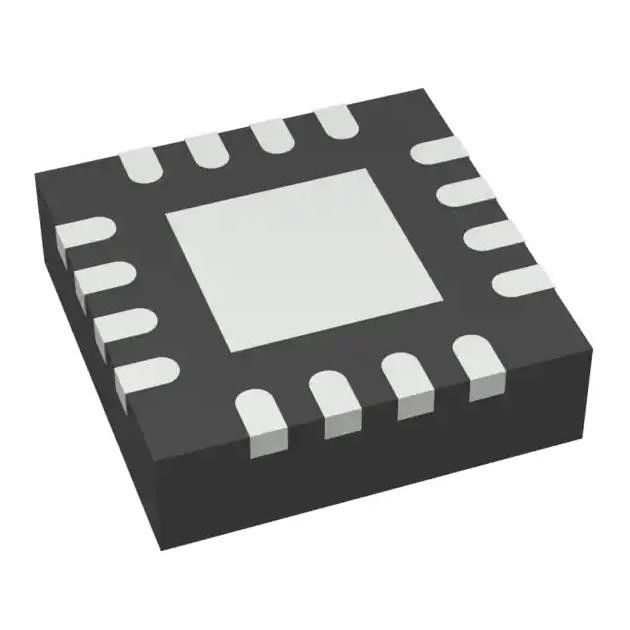

TPS650002TRTERQ1 DIP IC Sockets Automotive PMIC 16-WQFN (3x3)
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | TPS650002TRTERQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | TPS650002TRTERQ1 | Applications: | Automotive |
|---|---|---|---|
| Voltage - Supply: | 2.3V ~ 6V | Operating Temperature: | -40°C ~ 105°C |
| Mounting Type: | Surface Mount | Supplier Device Package: | 16-WQFN (3x3) |
| Series: | Automotive, AEC-Q100 | Base Product Number: | TPS650002 |
Product Description
TPS650002TRTERQ1 DIP IC Sockets Automotive PMIC 16-WQFN (3x3)
The TPS650002-Q1 device is a single-chip powermanagement IC (PMIC) for automotive applications.
This device combines a single step-down converter with two low-dropout regulators. The step-down
converter enters a low-power mode at light load for maximum efficiency across the widest possible range
of load currents.
Features of TPS650002TRTERQ1
• Qualified for automotive applications
• AEC-Q100 qualified with the following results:
– Device temperature grade 2: –40°C to +105°C,
TA
• Step-down converters:
– VIN range from 2.3 V to 6 V
– 2.25-MHz Fixed-frequency operation
– 600-mA Output current
• LDOs:
– VIN Range From 1.6 V to 6 V
– Up to 300-mA output current
– Separate power inputs and enables
• 3-mm × 3-mm 16-Pin WQFN
Specifications of TPS650002TRTERQ1
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Power Management - Specialized
|
|
Mfr
|
Texas Instruments
|
|
Series
|
Automotive, AEC-Q100
|
| Package | Tape & Reel |
|
Product
|
TPS650002TRTERQ1
|
|
Applications
|
Automotive
|
|
Current - Supply
|
-
|
|
Voltage - Supply
|
2.3V ~ 6V
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-WFQFN Exposed Pad
|
|
Supplier Device Package
|
16-WQFN (3x3)
|
|
Base Product Number
|
TPS650002
|
Applications of TPS650002TRTERQ1
• Automotive camera module
• Automotive infotainment
• Automotive cluster
• Automotive sensor fusion
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
