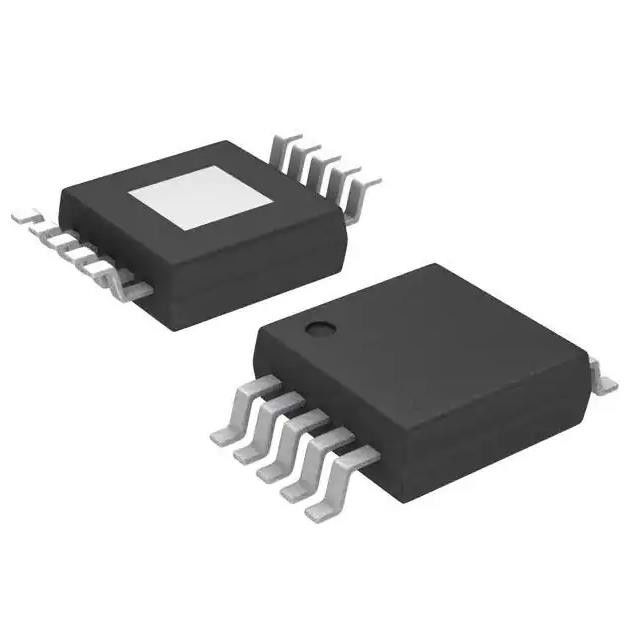

TPS92515HVQDGQRQ1 Sensor IC Chip LED Driver 1 2A 10-HVSSOP 5.5V
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | TPS92515HVQDGQRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | TPS92515HVQDGQRQ1 | Internal Switch(s): | Yes |
|---|---|---|---|
| Number Of Outputs: | 1 | Voltage - Supply (Min): | 5.5V |
| Voltage - Supply (Max): | 65V | Current - Output / Channel: | 2A |
| Operating Temperature: | -40°C ~ 150°C (TJ) | Supplier Device Package: | 10-HVSSOP |
Product Description
TPS92515HVQDGQRQ1 Sensor IC Chip LED Driver 1 2A 10-HVSSOP 5.5V
The TPS92515 family of devices are compact monolithic switching regulators integrating a low resistance N-Channel MOSFET. The devices are
intended for high-brightness LED lighting applications where efficiency, high bandwidth, PWM and/or analog dimming and small size are important.
Features of TPS92515HVQDGQRQ1
• AEC-Q100 Grade 1 Qualified
• Integrated 290-mΩ (typ) Internal N-Channel FET
• Input Voltage Range:
– TPS92515x: 5.5 V to 42 V
– TPS92515HVx: 5.5 V to 65 V
– Operation Down to 5.15 V After Start-Up
• Low Offset High-side Peak Current Comparator
• Constant Average Current, up to 2 A
• Inherent Cycle-by-Cycle Current Limit
• Multiple Dimming Methods
– 10,000:1 Shunt PWM Dimming Range
– 1000:1 PWM Dimming Range
– 200:1 Analog Dimming Range
• Simple Constant Off-time Control
– No Loop Compensation
– Fast Transient Response
• Thermally Enhanced HVSSOP Package
• Integrated Thermal Protection
Specifications of TPS92515HVQDGQRQ1
|
Product
|
TPS92515HVQDGQRQ1
|
|
Type
|
DC DC Regulator
|
|
Topology
|
Step-Down (Buck)
|
| Package | Tape & Reel |
|
Internal Switch(s)
|
Yes
|
|
Number of Outputs
|
1
|
|
Voltage - Supply (Min)
|
5.5V
|
|
Voltage - Supply (Max)
|
65V
|
|
Voltage - Output
|
-
|
|
Current - Output / Channel
|
2A
|
|
Frequency
|
-
|
|
Dimming
|
Analog, PWM
|
|
Applications
|
Automotive, Lighting
|
|
Operating Temperature
|
-40°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width)
|
|
Supplier Device Package
|
10-HVSSOP
|
|
Base Product Number
|
TPS92515
|
Applications of TPS92515HVQDGQRQ1
• Automotive Lighting: LED Switched Matrix AFS Headlamps, DRL, High/Low Beam, Fog, Rear, Turn Signal, Side Marker, Aftermarket
• Industrial Lighting: Factory Automation, Time of Flight (TOF), Appliances, Retail Illumination, Machine Vision and Inspection, Emergency, Exit
and/or Safety Lighting, Medical Lighting, Stage and Area Lighting
• Agricultural, Marine, and Heavy Industry Lighting
• High Contrast Shunt FET Dimming
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
