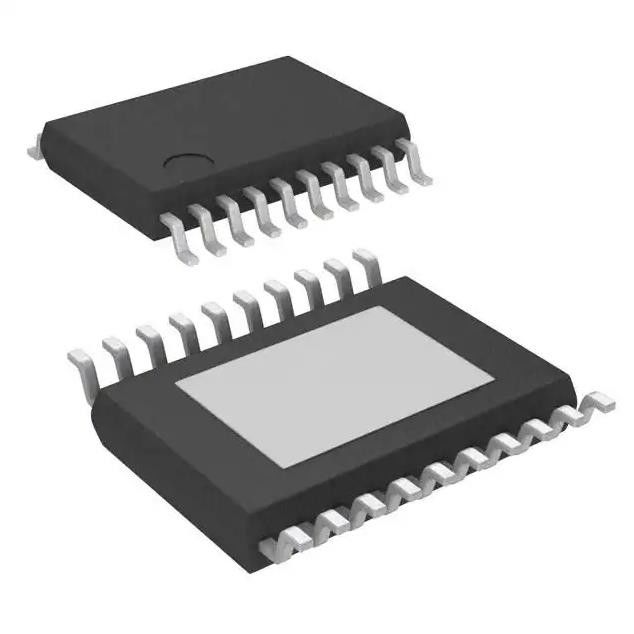

TPS76733QPWPRQ1 Regulator IC Temperature Sensor Chip 1 Output 1A 20-HTSSOP
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | TPS76733QPWPRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | TPS76733QPWPRQ1 | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 10V | Voltage - Output (Min/Fixed): | 3.3V |
| Voltage Dropout (Max): | 0.58V @ 1A | Current - Output: | 1A |
| Current - Quiescent (Iq): | 125 µA | Operating Temperature: | -40°C ~ 125°C |
Product Description
TPS76733QPWPRQ1 Regulator IC Temperature Sensor Chip 1 Output 1A 20-HTSSOP
|
Linear Voltage Regulator IC Positive Fixed 1 Output 1A 20-HTSSOP
|
These devices are designed to have a fast transient response and be stable with 10-µF low ESR
capacitors. This combination provides high performance at a reasonable cost.
Features of TPS76733QPWPRQ1
Qualified for Automotive Applications
ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
1−A Low-Dropout (LDO) Voltage Regulator
Available in 1.5-V, 1.8-V, 2.5-V, 2.7-V, 2.8-V, 3-V, 3.3-V, 5-V Fixed-Output and Adjustable Versions
Dropout Voltage Down to 230 mV at 1 A (TPS76750)
Ultralow 85-µA Typical Quiescent Current
Fast Transient Response
2% Tolerance Over Specified Conditions for Fixed-Output Versions
Open Drain Power-On Reset With 200-ms Delay (See TPS768xx for PG Option)
20-Pin TSSOP PowerPAD (PWP) Package
Thermal Shutdown Protection
Specifications of TPS76733QPWPRQ1
|
Product |
TPS76733QPWPRQ1
|
|
Output Configuration
|
Positive
|
| Package | Tape & Reel |
|
Output Type
|
Fixed
|
|
Number of Regulators
|
1
|
|
Voltage - Input (Max)
|
10V
|
|
Voltage - Output (Min/Fixed)
|
3.3V
|
|
Voltage - Output (Max)
|
-
|
|
Voltage Dropout (Max)
|
0.58V @ 1A
|
|
Current - Output
|
1A
|
|
Current - Quiescent (Iq)
|
125 µA
|
|
PSRR
|
60dB (1kHz)
|
|
Control Features
|
Enable, Reset
|
|
Protection Features
|
Over Current, Over Temperature, Reverse Polarity
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
20-PowerTSSOP (0.173", 4.40mm Width)
|
|
Supplier Device Package
|
20-HTSSOP
|
|
Base Product Number
|
TPS76733
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
