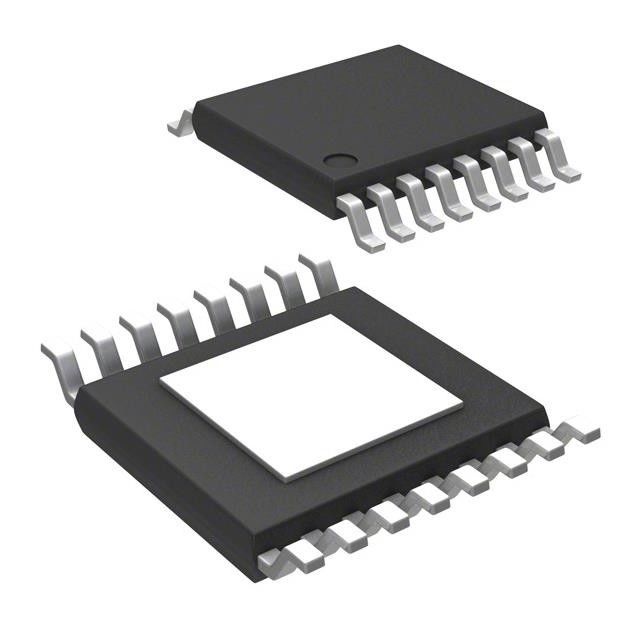

TPS2HB16BQPWPRQ1 Temperature Sensor Chip Power Switch/Driver 1:1 60A 16-HTSSOP

Product Description

TLV3501AIDBVT IC CMOS Rail-to-Rail TTL SOT-23-6 Temperature Sensor Chip

The TPS2HB16-Q1 also provides a high accuracy analog current sense that allows for improved load
diagnostics. By reporting load current and device temperature to a system MCU, the device enables
predictive maintenance and load diagnostics that improves the system lifetime. The TPS2HB16-Q1 is available in a HTSSOP
package which allows for reduced PCB footprint.

Features of TPS2HB16BQPWPRQ1

• Qualified for automotive applications
• AEC-Q100 qualified with the following results:
– Device temperature grade 1: TA = –40°C to 125°C ambient operating temperature range
– Device HBM ESD classification level 2
– Device CDM ESD classification level C4B
– Withstands 40-V load dump
• Dual-channel smart high-side switch with 16-mΩ RON (TJ = 25°C)
• Improve system level reliability through adjustable current limiting
– Current limit adjustable from 4.1 A to 48.5 A and internally fixed at 60 A
• Robust integrated output protection:
– Integrated thermal protection
– Protection against short to ground/battery
– Protection against reverse battery events including automatic switch on with reverse voltage
– Automatic shut off if loss of battery/ground occurs
– Integrated output clamp to demagnetize inductive loads
– Configurable fault handling
• Analog sense output can be configured to accurately measure:
– Load current
– Device temperature
• Provides fault indication through SNS pin
– Detection of open load and short-to-battery

Specifications of TPS2HB16BQPWPRQ1

Applications of TPS2HB16BQPWPRQ1

• Automotive display module
• ADAS modules
• Seat comfort module
• Transmission control unit
• HVAC control module
• Body control modules
• LED lighting
• 2x27W Bulbs
