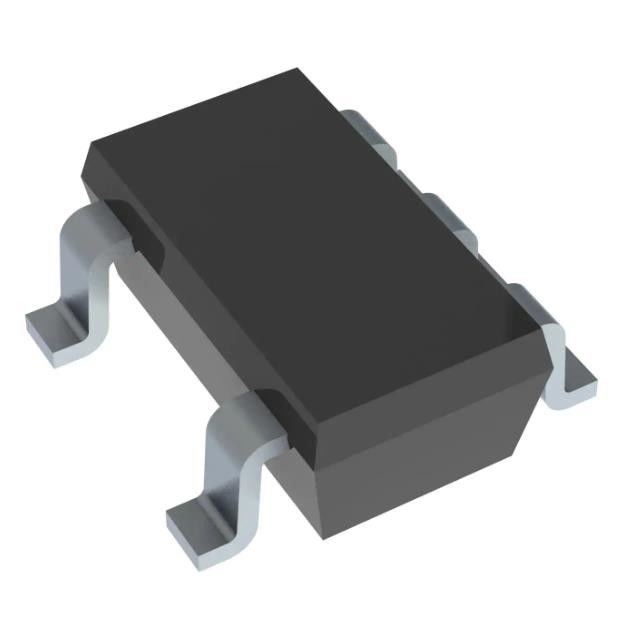

TLVH431AQDBVRQ1 Shunt Voltage Reference IC 1.24V 18 VV ±1% 70 mA SOT-23-5
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | TLVH431AQDBVRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | TLVH431AQDBVRQ1 | Voltage - Output (Min/Fixed): | 1.24V |
|---|---|---|---|
| Voltage - Output (Max): | 18 V | Current - Output: | 70 MA |
| Tolerance: | ±1% | Current - Cathode: | 100 µA |
| Operating Temperature: | -40°C ~ 125°C | ||
Product Description
TLVH431AQDBVRQ1 Shunt Voltage Reference IC 1.24V 18 VV ±1% 70 mA SOT-23-5
Shunt Voltage Reference IC Adjustable 1.24V 18 VV ±1% 70 mA SOT-23-5
The TLVH431 devices are low-voltage 3-terminal adjustable voltage references, with thermal stability specified over the automotive temperature range. Output voltage can be set to any value between VREF (1.24 V) and 18 V with two external resistors (see Figure 2). These devices operate from a lower voltage (1.24 V) than the widely used TL431 and TL1431 shunt-regulator references.
Features of TLVH431AQDBVRQ1
• Qualified for Automotive Applications
• Low-Voltage Operation: Down to 1.24 V
• Reference Voltage Tolerances at 25°C
– 0.5% for B Grade
– 1% for A Grade
• Adjustable Output Voltage, VO = VREF to 18 V
• Wide Operating Cathode Current Range: 100 μA to 70 mA
• 0.25-Ω Typical Output Impedance
• –40°C to 125°C Specifications
Specifications of TLVH431AQDBVRQ1
|
Mfr
|
Texas Instruments
|
|
Series
|
Automotive, AEC-Q100
|
|
Product
|
TLVH431AQDBVRQ1
|
|
Reference Type
|
Shunt
|
|
Output Type
|
Adjustable
|
|
Voltage - Output (Min/Fixed)
|
1.24V
|
|
Voltage - Output (Max)
|
18 V
|
|
Current - Output
|
70 mA
|
|
Tolerance
|
±1%
|
|
Current - Cathode
|
100 µA
|
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SC-74A, SOT-753
|
|
Supplier Device Package
|
SOT-23-5
|
|
Base Product Number
|
TLVH431
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
