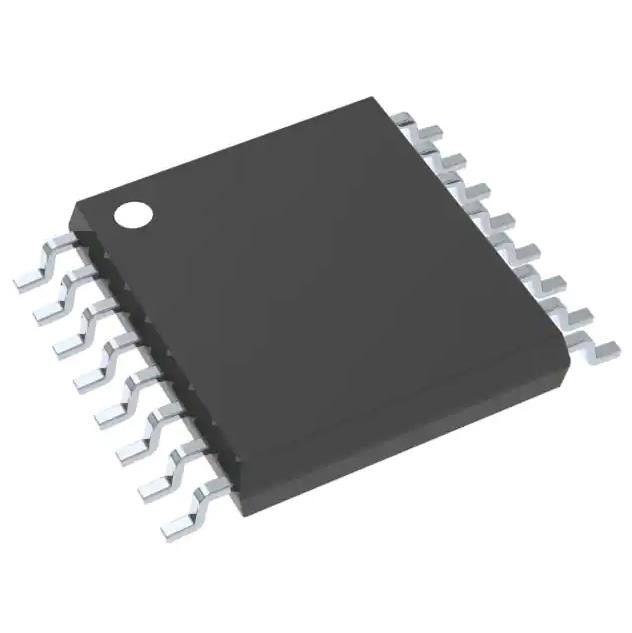

SN65LVDS32PWR 0/4 Receiver LVDS 16-TSSOP 50 mV 3V ~ 3.6V 65LVDS
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | SN65LVDS32PWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | SN65LVDS32PWR | Type: | Receiver |
|---|---|---|---|
| Protocol: | LVDS | Number Of Drivers/Receivers: | 0/4 |
| Receiver Hysteresis: | 50 MV | Data Rate: | 400Mbps |
| Voltage - Supply: | 3V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C |
Product Description
SN65LVDS32PWR 0/4 Receiver LVDS 16-TSSOP 50 mV 3V ~ 3.6V 65LVDS
0/4 Receiver LVDS 16-TSSOP
Features of SN65LVDS32PWR
Meet or Exceed the Requirements of ANSI TIA/EIA-644 Standard
Operate With a Single 3.3-V Supply
Designed for Signaling Rates of up to 150 Mbps (See)
Differential Input Thresholds ±100 mV Max Typical Propagation Delay Time of 2.1 ns
Power Dissipation 60 mW Typical Per Receiver at Maximum Data Rate
Bus-Terminal ESD Protection Exceeds 8 kV
Low-Voltage TTL(LVTTL)Logic Output Levels
Pin Compatible With AM26LS32,MC3486,and uA9637
Open-Circuit Fail-Safe
Cold Sparing for Space and High-Reliability Applications Requiring Redundancy
Specifications of SN65LVDS32PWR
|
Product
|
SN65LVDS32PWR
|
|
Type
|
Receiver
|
|
Protocol
|
LVDS
|
|
Number of Drivers/Receivers
|
0/4
|
|
Duplex
|
-
|
|
Receiver Hysteresis
|
50 mV
|
|
Data Rate
|
400Mbps
|
|
Voltage - Supply
|
3V ~ 3.6V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-TSSOP (0.173", 4.40mm Width)
|
|
Supplier Device Package
|
16-TSSOP
|
|
Base Product Number
|
65LVDS32
|
range (−10 ̊
Environmental & Export Classifications
wh avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Applications of SN65LVDS32PWR
• Wireless Infrastructure
• Telecom Infrastructure
• Printer
