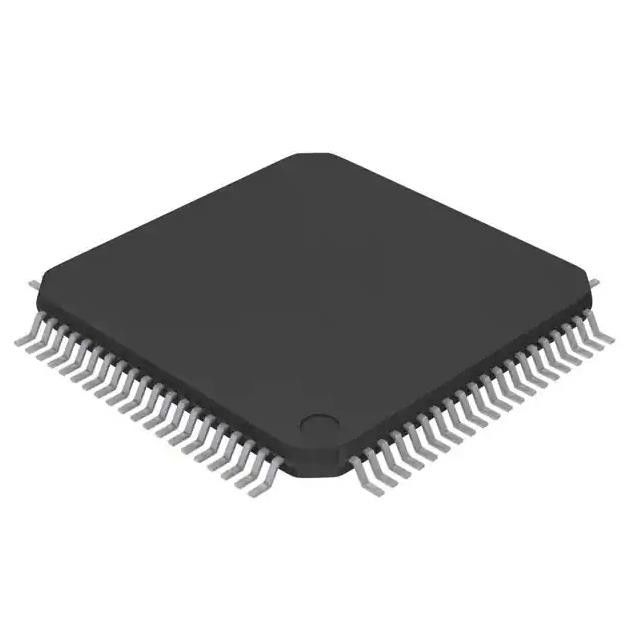

PIC18F87J10T-I / PT Integrated Circuit Chip 8-Bit 40MHz 128KB FLASH 80-TQFP
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | PIC18F87J10T-I/PT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | PIC18F87J10T-I/PT | Core Processor: | PIC |
|---|---|---|---|
| Core Size: | 8-Bit | Speed: | 40MHz |
| Number Of I/O: | 66 | Program Memory Size: | 128KB (64K X 16) |
| RAM Size: | 3.8K X 8 | Voltage - Supply (Vcc/Vdd): | 2V ~ 3.6V |
Product Description
PIC18F87J10T-I / PT Integrated Circuit Chip 8-Bit 40MHz 128KB FLASH 80-TQFP
PIC PIC® 18J Microcontroller IC 8-Bit 40MHz 128KB (64K x 16) FLASH 80-TQFP (12x12)
Features of PIC18F87J10T-I/PT
• Operating Voltage Range: 2.0V to 3.6V
• 5.5V Tolerant Input (digital pins only)
• On-Chip 2.5V Regulator
• Low-Power, High-Speed CMOS Flash Technology
• C Compiler Optimized Architecture:
- Optional extended instruction set designed to
optimize re-entrant code
• Priority Levels for Interrupts
• 8 x 8 Single-Cycle Hardware Multiplier
• Extended Watchdog Timer (WDT):
- Programmable period from 4 ms to 131s
• Single-Supply In-Circuit Serial Programming™
(ICSP™) via Two Pins
• In-Circuit Debug (ICD) with Three Break points via
Two Pins
• Power-Managed modes:
- Run: CPU on, peripherals on
- Idle: CPU off, peripherals on
- Sleep: CPU off, peripherals off
• Flash Program Memory:
- 1000 erase/write cycle endurance typical
- 20 year retention minimum
- Self-write capability during normal operation
Specifications of PIC18F87J10T-I/PT
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Embedded
Microcontrollers
|
|
Mfr
|
Microchip Technology
|
|
Series
|
PIC® 18J
|
|
Product
|
PIC18F87J10T-I/PT
|
|
Core Processor
|
PIC
|
|
Core Size
|
8-Bit
|
|
Speed
|
40MHz
|
|
Connectivity
|
EBI/EMI, I²C, SPI, UART/USART
|
|
Peripherals
|
Brown-out Detect/Reset, POR, PWM, WDT
|
|
Number of I/O
|
66
|
|
Program Memory Size
|
128KB (64K x 16)
|
|
Program Memory Type
|
FLASH
|
|
EEPROM Size
|
-
|
|
RAM Size
|
3.8K x 8
|
|
Voltage - Supply (Vcc/Vdd)
|
2V ~ 3.6V
|
|
Data Converters
|
A/D 15x10b
|
|
Oscillator Type
|
Internal
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
80-TQFP
|
|
Supplier Device Package
|
80-TQFP (12x12)
|
|
Base Product Number
|
PIC18F87
|
range (−10 ̊
Environmental & Export Classifications
wh avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
