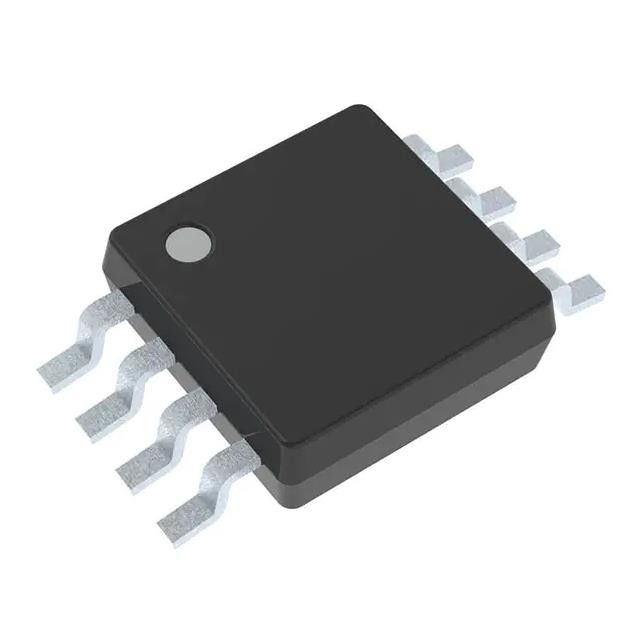

OPA197QDGKRQ1 Integrated Circuit Chip IC OPAMP GP 1 CIRCUIT 8VSSOP
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | OPA197QDGKRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | OPA197QDGKRQ1 | Slew Rate: | 20V/µs |
|---|---|---|---|
| Gain Bandwidth Product: | 10 MHz | Current - Input Bias: | 5 PA |
| Voltage - Input Offset: | 25 µV | Current - Supply: | 1mA |
| Current - Output / Channel: | 65 MA | Voltage - Supply Span (Min): | 4.5 V |
Product Description
OPA197QDGKRQ1 Integrated Circuit Chip IC OPAMP GP 1 CIRCUIT 8VSSOP
General Purpose Amplifier 1 Circuit Rail-to-Rail 8-VSSOP
Features of OPA197QDGKRQ1
• AEC-Q100 qualified for automotive applications:
– Temperature grade 1: –40°C to +125°C, TA
• Low offset voltage: ±250 µV (maximum)
• Low offset voltage drift: ±0.2 µV/°C
• Low noise: 5.5 nV/√Hz at 1 kHz
• High common-mode rejection: 140 dB
• Low bias current: ±5 pA
• Rail-to-rail input and output
• Wide bandwidth: 10 MHz GBW
• High slew rate: 20 V/µs
• Low quiescent current: 1 mA per amplifier
• Wide supply: ±2.25 V to ±18 V, 4.5 V to 36 V
• EMI/RFI filtered inputs
• Differential input-voltage range to supply rail
• High capacitive load drive capability: 1 nF
• Industry-standard packages:
– Single and dual channel in very-small, 8-pin
VSSOP
– Quad channel in 14-pin TSSOP
Specifications of OPA197QDGKRQ1
|
Product |
OPA197QDGKRQ1
|
|
Amplifier Type
|
General Purpose
|
|
Number of Circuits
|
1
|
|
Output Type
|
Rail-to-Rail
|
|
Slew Rate
|
20V/µs
|
|
Gain Bandwidth Product
|
10 MHz
|
|
Current - Input Bias
|
5 pA
|
|
Voltage - Input Offset
|
25 µV
|
|
Current - Supply
|
1mA
|
|
Current - Output / Channel
|
65 mA
|
|
Voltage - Supply Span (Min)
|
4.5 V
|
|
Voltage - Supply Span (Max)
|
36 V
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
|
|
Supplier Device Package
|
8-VSSOP
|
|
Base Product Number
|
OPA197
|
range (−10 ̊
Environmental & Export Classifications
wh avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
Applications of OPA197QDGKRQ1
• Inverter and motor control
• DC/DC converter
• On-board (OBC) and wireless charger
• Battery management system (BMS)
