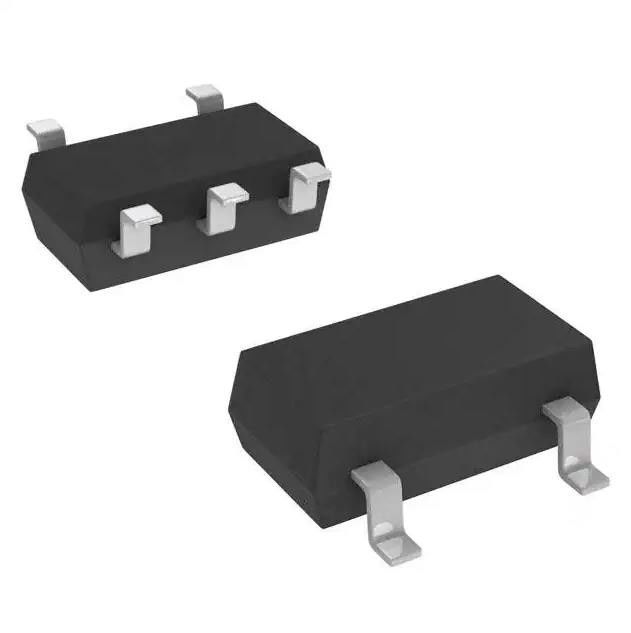

NL17SZ00DFT2G Integrated Circuit Chip 1 Channel SC-88A (SC-70-5/SOT-353)
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | NL17SZ00DFT2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | NL17SZ00DFT2G | Number Of Inputs: | 2 |
|---|---|---|---|
| Voltage - Supply: | 1.65V ~ 5.5V | Current - Quiescent (Max): | 1 µA |
| Current - Output High, Low: | 32mA, 32mA | Max Propagation Delay @ V, Max CL: | 4.3ns @ 5V, 50pF |
| Operating Temperature: | -55°C ~ 125°C | Number Of Circuits: | 1 |
Product Description
NL17SZ00DFT2G Integrated Circuit Chip 1 Channel SC-88A (SC-70-5/SOT-353)
The NL17SZ00 is a single 2−input NAND Gate in tiny footprint packages.
Features of NL17SZ00DFT2G
• Designed for 1.65 V to 5.5 V VCC Operation
• 2.4 ns tPD at VCC = 5 V (typ)
• Inputs/Outputs Overvoltage Tolerant up to 5.5 V
• IOFF Supports Partial Power Down Protection
• Source/Sink 24 mA at 3.0 V
• Available in SC−88A, SC−74A, SOT−553, SOT−953 and UDFN6
Packages
• Chip Complexity < 100 FETs
• NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Specifications of NL17SZ00DFT2G
|
Product
|
NL17SZ00DFT2G
|
|
Logic Type
|
NAND Gate
|
|
Number of Circuits
|
1
|
|
Number of Inputs
|
2
|
|
Features
|
-
|
|
Voltage - Supply
|
1.65V ~ 5.5V
|
|
Current - Quiescent (Max)
|
1 µA
|
|
Current - Output High, Low
|
32mA, 32mA
|
|
Input Logic Level - Low
|
-
|
|
Input Logic Level - High
|
-
|
|
Max Propagation Delay @ V, Max CL
|
4.3ns @ 5V, 50pF
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
SC-88A (SC-70-5/SOT-353)
|
|
Package / Case
|
5-TSSOP, SC-70-5, SOT-353
|
|
Base Product Number
|
17SZ00
|
range (−10 ̊
Environmental & Export Classifications
wh avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
