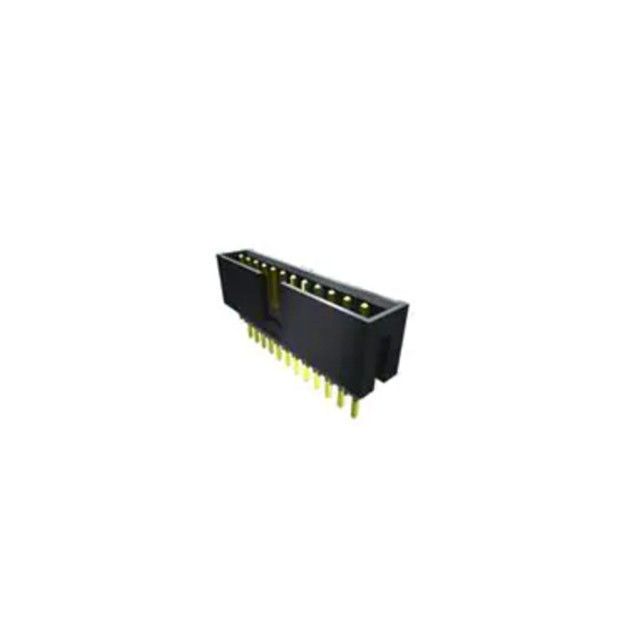

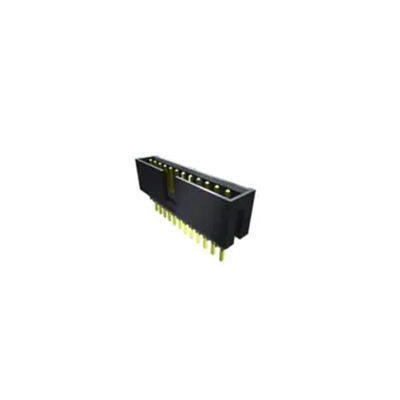

ZSS-120-02-S-D-515 Connector Header Through Hole 40 position 0.100" (2.54mm)
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ZSS-120-02-S-D-515 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Positions: | 40 | Number Of Rows: | 2 |
|---|---|---|---|
| Row Spacing - Mating: | 0.100" (2.54mm) | Number Of Positions Loaded: | All |
| Operating Temperature: | -55°C ~ 125°C | Material Flammability Rating: | UL94 V-0 |
Product Description
ZSS-120-02-S-D-515 Through Hole Headers & Wire Housings Samtec
Connector Header Through Hole 40 position 0.100" (2.54mm)
Specifications of ZSS-120-02-S-D-515
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | Samtec Inc. |
| Series | Flex Stack, ZSS |
| Package | Bulk |
| Product Status | Active |
| Connector Type | Header, Elevated |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.250" (6.35mm) |
| Contact Length - Post | 0.215" (5.46mm) |
| Overall Contact Length | 0.730" (18.54mm) |
| Insulation Height | 0.515" (13.08mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyester, Glass Filled |
| Features | Keying Slot |
| Operating Temperature | -525°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
FAQ
Q: Can you accept small order?
A: Yes,small order is available .Please contact with us.
Q: Do you provide samples,it is free or extra?
A:Yes,we could offer the sample for free charge but do not pay the cost of freight.
Q: Can we get a lower price? Any Discount?
A: Yes,price is not a problem,everything could be negotiated based on the quantity.
Q: Do you provide the BOM Kitting service? Can I send my BOM to you?
A: Yes,Please feel free to contact us and send us your BOM and then we'll quote for you.
