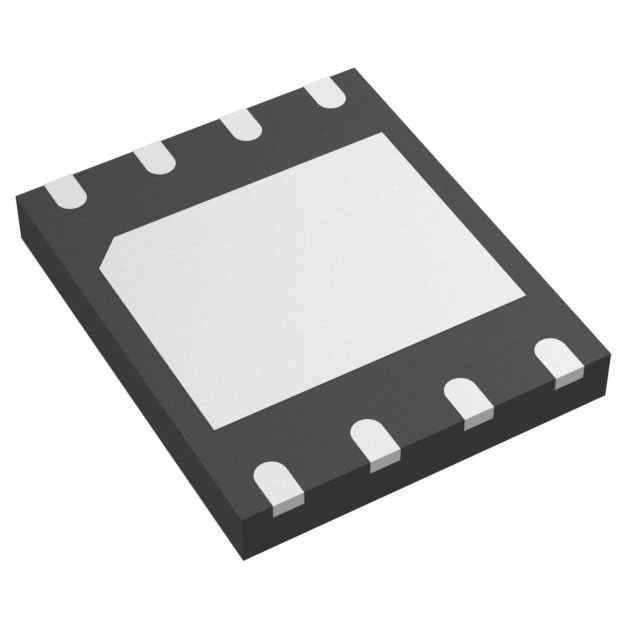

W25Q128JWPIM FLASH - NOR Memory IC 128Mbit SPI - Quad I/O 133 MHz 8-WSON (6x5)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | W25Q128JWPIM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Memory Size: | 128Mbit | Memory Organization: | 16M X 8 |
|---|---|---|---|
| Memory Interface: | SPI - Quad I/O | Clock Frequency: | 133 MHz |
| Write Cycle Time - Word, Page: | -, 3ms | Voltage - Supply: | 1.7V ~ 1.95V |
Product Description
W25Q128JWPIM FLASH - NOR Memory IC 128Mbit SPI - Quad I/O 133 MHz 8-WSON (6x5)
Specifications of W25Q128JWPIM
|
TYPE
|
DESCRIPTION
|
|
Category
|
Integrated Circuits (ICs)
|
|
Memory
|
|
|
Memory
|
|
|
Mfr
|
Winbond Electronics
|
|
Series
|
SpiFlash®
|
|
Packaging
|
Tube
|
|
Memory Type
|
Non-Volatile
|
|
Memory Format
|
FLASH
|
|
Technology
|
FLASH - NOR
|
|
Memory Size
|
128Mbit
|
|
Memory Organization
|
16M x 8
|
|
Memory Interface
|
SPI - Quad I/O
|
|
Clock Frequency
|
133 MHz
|
|
Write Cycle Time - Word, Page
|
-, 3ms
|
|
Voltage - Supply
|
1.7V ~ 1.95V
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-WDFN Exposed Pad
|
|
Supplier Device Package
|
8-WSON (6x5)
|
|
Base Product Number
|
W25Q128
|
Features of W25Q128JWPIM
New Family of SpiFlash Memories
– W25Q128JW: 128M-bit / 16M-byte
– Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
– Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
– Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
– Software & Hardware Reset (1)
Highest Performance Serial Flash
– 133MHz Quad I/O SPI clocks
– 532MHz equivalent Quad SPI
– 66MB/S continuous data transfer rate
– Min. 100K Program-Erase cycles
– More than 20-year data retention
Low Power, Wide Temperature Range
– Vcc:1.7~1.95V,-40~85℃
– -40°C to +105°C operating range(2)
– 1mA active current,<1µA Power-down (typ.)
Flexible Architecture with 4KB sectors
– Uniform Sector/Block Erase (4K/32K/64K-Byte)
– Program 1 to 256 byte per programmable page
– Erase/Program Suspend & Resume
