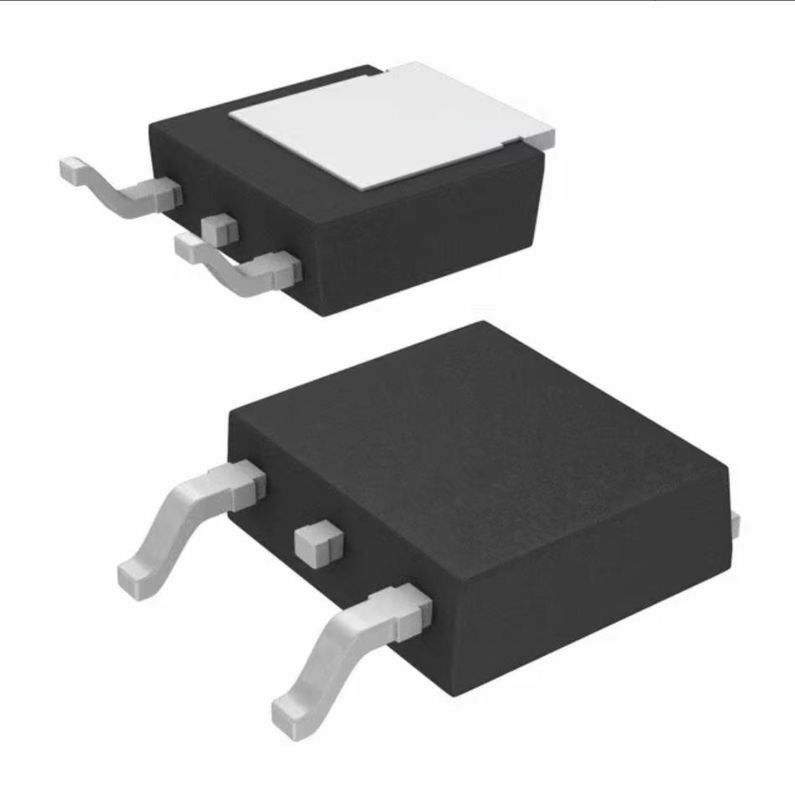

IPD80R900P7ATMA1 Electronic IC Chips MOSFET IC N CH 800V 6A TO252-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IPD80R900P7ATMA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Input Capacitance (Ciss) (Max) @ Vds: | 350 PF @ 500 V | FET Feature: | - |
|---|---|---|---|
| Power Dissipation (Max): | 45W (Tc) | Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount | Supplier Device Package: | PG-TO252-3 |
| Package / Case: | TO-252-3, DPak (2 Leads + Tab), SC-63 | Base Product Number: | IPD80R900 |
| High Light: | IPD80R900P7ATMA1,MOSFET IC N CH 800V 6A,MOSFET IC 800V 6A TO252-3 |
||
Product Description
IPD60N10S4L-12 WIRELESS RF MODULE MOSFET N-CH 100V 60A TO252-3
Ipd80r900p7atma1 Wireless Rf Module Mosfet N-Ch 800v 6a To252-3
N-Channel 800 V 6A (Tc) 45W (Tc) Surface Mount PG-TO252-3
Specifications of IPD80R900P7ATMA1
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Infineon Technologies |
| Series | CoolMOS™ P7 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 900mOhm @ 2.2A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 110µA |
| Gate Charge (Qg) (Max) @ Vgs | 15 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 350 pF @ 500 V |
| FET Feature | - |
| Power Dissipation (Max) | 45W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TO252-3 |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Base Product Number | IPD80R900 |
Features of IPD80R900P7ATMA1
•Best-in-classFOMRDS(on)*Eoss;reducedQg,Ciss,andCoss
•Best-in-classDPAKRDS(on)
•Best-in-classV(GS)thof3VandsmallestV(GS)thvariationof±0.5V
•IntegratedZenerDiodeESDprotection
•Fullyoptimizedportfolio
Applications of IPD80R900P7ATMA1
•Best-in-classperformance
•Enablinghigherpowerdensitydesigns,BOMsavingsandlower assemblycosts
•Easytodriveandtoparallel
•BetterproductionyieldbyreducingESDrelatedfailures
•Lessproductionissuesandreducedfieldreturns
•Easytoselectrightpartsforfinetuningofdesigns
Environmental & Export Classifications of IPD80R900P7ATMA1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
