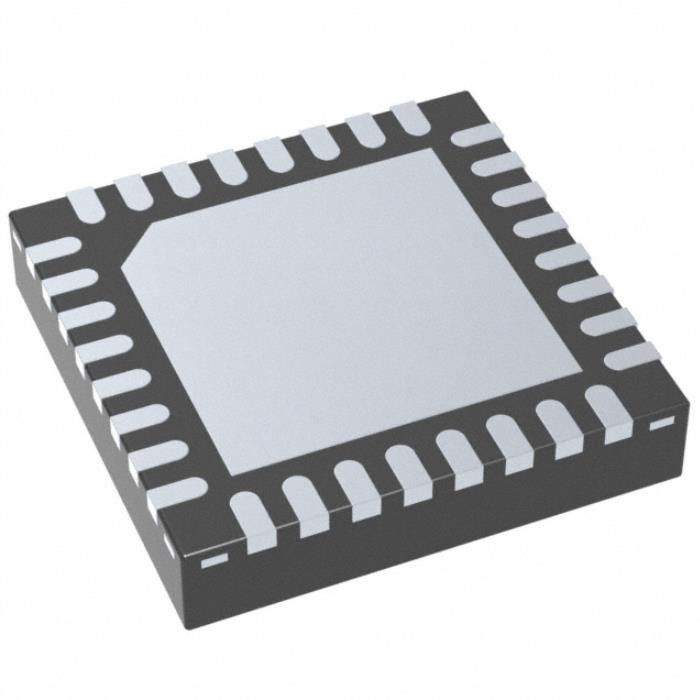

CC2640R2FRSMT IC RF TXRX+MCU BLE 5.1 32VQFN ADE Chip
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CC2640R2FRSMT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Type: | TxRx + MCU | RF Family/Standard: | Bluetooth |
| Protocol: | Bluetooth V5.1 | Modulation: | FSK |
| Frequency: | 2.4GHz | Data Rate (Max): | 2Mbps |
| High Light: | CC2640R2FRSMT IC RF,32VQFN ADE Chip,BLE 5.1 CC2640R2FRSMT |
||
Product Description
BQ25050DQCR Wireless Rf Module Ic Batt Chg Li-Ion 1cell 10wson
CC2640R2FRSMT Wireless Rf Module IC RF TXRX+MCU BLE 5.1 32VQFN
IC RF TxRx + MCU Bluetooth Bluetooth v5.1 2.4GHz 32-VFQFN Exposed Pad
Specifications of BQ25050DQCR
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Transceiver ICs | |
| Mfr | Texas Instruments |
| Series | SimpleLink™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Type | TxRx + MCU |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v5.1 |
| Modulation | FSK |
| Frequency | 2.4GHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 5dBm |
| Sensitivity | -97dBm |
| Memory Size | 128kB Flash, 20kB RAM |
| Serial Interfaces | I²C, I²S, SPI, UART |
| GPIO | 10 |
| Voltage - Supply | 1.8V ~ 3.8V |
| Current - Receiving | 5.9mA |
| Current - Transmitting | 9.1mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (4x4) |
| Base Product Number | CC2640 |
Features of BQ25050DQCR
• Microcontroller
– Powerful Arm® Cortex®-M3
– EEMBC CoreMark® score: 142
– Up to 48-MHz clock speed
– 275KB of nonvolatile memory including 128KB of in-system Programmable Flash
– Up to 28KB of system SRAM, of which 20KB is ultra-low leakage SRAM
– 8KB of SRAM for cache or system RAM use
– 2-Pin cJTAG and JTAG debugging
– Supports over-the-air upgrade (OTA)
• Ultra-low power sensor controller
– Can run autonomous from the rest of the system
– 16-bit architecture
– 2KB of ultra-low leakage SRAM for code and data
• Efficient code size architecture, placing drivers, TI-RTOS, and Bluetooth® software in ROM to make more Flash available for the application
Applications of BQ25050DQCR
• Home and Building Automation
– Connected appliances
– Lighting
– Smart locks
– Gateways
– Security Systems
• Industrial
– Factory automation
– Asset tracking and management
• Sports and Fitness
– Wearable fitness and activity monitors
– Smart trackers
– Patient monitors
– Fitness machines
• HID
– Gaming
– Pointing devices (wireless keyboard and mouse)
Other features of BQ25050DQCR
• RoHS-compliant packages
– 2.7-mm × 2.7-mm YFV DSBGA34 (14 GPIOs)
– 4-mm × 4-mm RSM VQFN32 (10 GPIOs)
– 5-mm × 5-mm RHB VQFN32 (15 GPIOs)
– 7-mm × 7-mm RGZ VQFN48 (31 GPIOs)
• Peripherals
– All digital peripheral pins can be routed to any GPIO
– Four general-purpose timer modules (eight 16-bit or four 32-bit timers, PWM each)
– 12-bit ADC, 200-ksamples/s, 8-channel analog MUX
– Continuous time comparator
– Ultra-low power analog comparator
– Programmable current source
– UART, I2C, and I2S
– 2× SSI (SPI, MICROWIRE, TI)
– Real-Time Clock (RTC)
– AES-128 security module
– True Random Number Generator (TRNG)
– Support for eight capacitive-sensing buttons
– Integrated temperature sensor
• External system
– On-chip internal DC/DC converter
– Seamless integration with CC2590 and CC2592 range extenders
– Very few external components
– Pin compatible with the SimpleLink™ CC2640 and CC2650 devices in all VQFN packages
– Pin compatible with the SimpleLink™ CC2642R and CC2652R devices in 7-mm x 7-mm VQFN packages
– Pin compatible with the SimpleLink™ CC1350 device in 4-mm × 4-mm and 5-mm × 5-mm VQFN packages
• Low power
– Wide supply voltage range
• Normal operation: 1.8 to 3.8 V
• External regulator mode: 1.7 to 1.95 V
– Active-Mode RX: 5.9 mA
– Active-Mode TX at 0 dBm: 6.1 mA
– Active-Mode TX at +5 dBm: 9.1 mA
– Active-Mode MCU: 61 µA/MHz
– Active-Mode MCU: 48.5 CoreMark/mA
– Active-Mode sensor controller: 0.4mA + 8.2 µA/MHz
– Standby: 1.1 µA (RTC running and RAM/CPU retention)
– Shutdown: 100 nA (wake up on external events)
• RF section
– 2.4-GHz RF transceiver compatible with Bluetooth® Low Energy 5.1 and earlier LE specifications
– Excellent receiver sensitivity (–97 dBm for BLE), selectivity, and blocking performance
– Link budget of 102 dB for BLE
– Programmable output power up to +5 dBm
– Single-ended or differential RF interface
– Suitable for systems targeting compliance with worldwide radio frequency regulations
• ETSI EN 300 328 (Europe)
• EN 300 440 Class 2 (Europe)
• FCC CFR47 Part 15 (US)
• ARIB STD-T66 (Japan)
Environmental & Export Classifications of BQ25050DQCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A992C |
| HTSUS | 8542.31.0001 |
