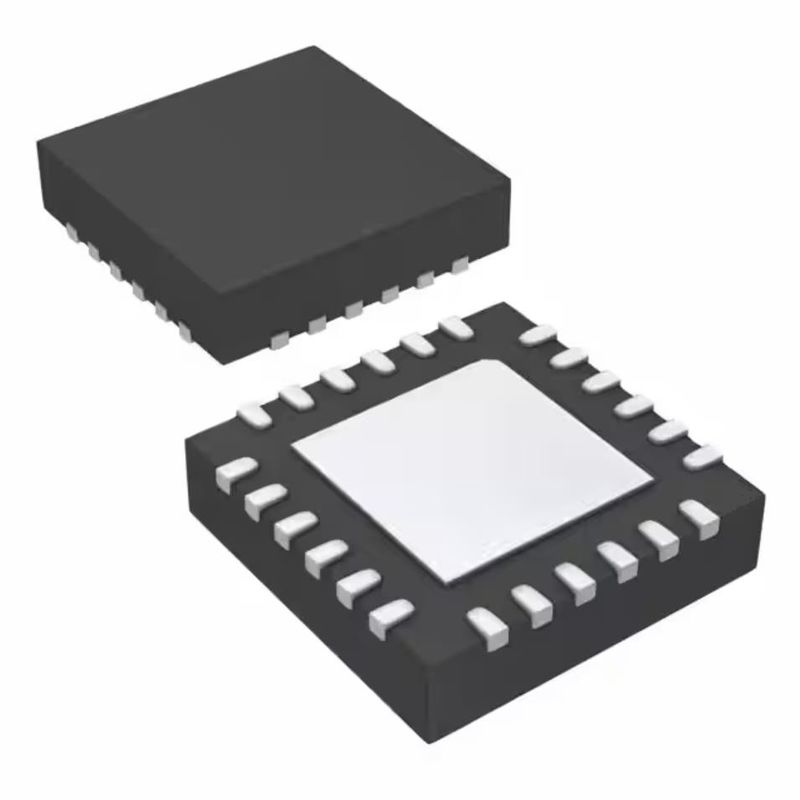

KSZ8081RNACA-TR Electronic IC Chips IC Transceiver Full 1/1 24QFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | KSZ8081RNACA-TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Duplex: | Full | Data Rate: | - |
|---|---|---|---|
| Voltage - Supply: | 1.8V, 2.5V, 3.3V | Operating Temperature: | 0°C ~ 70°C |
| Mounting Type: | Surface Mount | Package / Case: | 24-VFQFN Exposed Pad |
| Supplier Device Package: | 24-QFN (4x4) | Base Product Number: | KSZ8081 |
| High Light: | KSZ8081RNACA-TR,KSZ8081RNACA-TR IC Transceiver,24QFN IC Transceiver |
||
Product Description
KSZ8081RNACA-TR Wireless Rf Module Ic Transceiver Full 1/1 24qfn
1/1 Transceiver Full RMII 24-QFN (4x4)
Specifications of KSZ8081RNACA-TR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Microchip Technology |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Transceiver |
| Protocol | RMII |
| Number of Drivers/Receivers | 1月1日 |
| Duplex | Full |
| Data Rate | - |
| Voltage - Supply | 1.8V, 2.5V, 3.3V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) |
| Base Product Number | KSZ8081 |
Features of KSZ8081RNACA-TR
• Single-Chip 10BASE-T/100BASE-TX IEEE 802.3 Compliant Ethernet Transceiver
• RMII v1.2 Interface Support with a 50 MHz Reference Clock Output to MAC, and an Option to Input a 50 MHz Reference Clock
• RMII Back-to-Back Mode Support for a 100 Mbps Copper Repeater
• MDC/MDIO Management Interface for PHY Register Configuration
• Programmable Interrupt Output
• LED Outputs for Link and Activity Status Indication
• On-Chip Termination Resistors for the Differential Pairs
• Baseline Wander Correction
• HP Auto MDI/MDI-X to Reliably Detect and CorrectStraight-Through and Crossover Cable Connections with Disable and Enable Option
• Auto-Negotiation to Automatically Select the Highest Link-Up Speed (10/100 Mbps) and Duplex (Half/Full)
• Power-Down and Power-Saving Modes
• LinkMD® TDR-Based Cable Diagnostics to Identify Faulty Copper Cabling
• Parametric NAND Tree Support for Fault DetectionBetween Chip I/Os and the Board
• HBM ESD Rating (6 kV)
• Loopback Modes for Diagnostics
• Single 3.3V Power Supply with VDD I/O Options for 1.8V, 2.5V, or 3.3V
• Built-In 1.2V Regulator for Core
• Available in 24-pin 4 mm x 4 mm QFN Package
Applications of KSZ8081RNACA-TR
• Game Consoles
• IP Phones
• IP Set-Top Boxes
• IP TVs
• LOM
• Printers
Environmental & Export Classifications of KSZ8081RNACA-TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.39.0001 |
