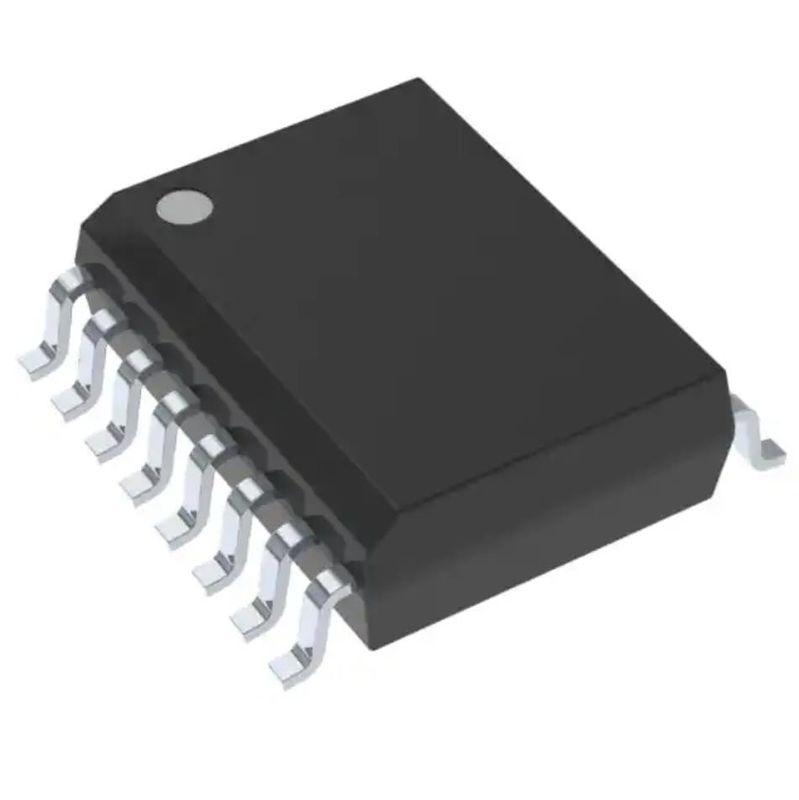

4CH GP 16SOIC ISOW7841DWER Electronic IC Chips DGTL ISO 5000VRMS
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ISOW7841DWER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Pulse Width Distortion (Max): | 4.7ns | Rise / Fall Time (Typ): | 2ns, 2ns |
|---|---|---|---|
| Voltage - Supply: | 3V ~ 5.5V | Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount | Package / Case: | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | 16-SOIC | Base Product Number: | ISOW7841 |
| High Light: | 16SOIC ISOW7841DWE,4CH GP ISOW7841DWE,DGTL ISO 5000VRMS |
||
Product Description
ISOW7841DWER Wireless Rf Module Dgtl Iso 5000vrms 4ch Gp 16soic
General Purpose Digital Isolator 5000Vrms 4 Channel 100Mbps 100kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
Specifications of ISOW7841DWER
| TYPE | DESCRIPTION |
| Category | Isolators |
| Digital Isolators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | Yes |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 3月1日 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Data Rate | 100Mbps |
| Propagation Delay tpLH / tpHL (Max) | 17.6ns, 17.6ns |
| Pulse Width Distortion (Max) | 4.7ns |
| Rise / Fall Time (Typ) | 2ns, 2ns |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ISOW7841 |
Features of ISOW7841DWER
• 100 Mbps data rate
• Robust isolation barrier:
– >100-Year projected lifetime at 1 kVRMS working voltage
– Up to 5000 VRMS isolation rating
– Up to 10 kVPK surge capability
– ±100 kV/µs minimum CMTI
• Integrated high-efficiency DC-DC converter with on-chip transformer
• 3-V to 5.5-V Wide input supply range
• Regulated 5-V or 3.3-V output
• Up to 0.65-W output power
• 5 V to 5 V; 5 V to 3.3 V: Available load current≥ 130 mA
• 3.3 V to 3.3 V: Available load current ≥ 75 mA
• 3.3 V to 5 V: Available load current ≥ 40 mA
• Soft-start to limit inrush current
• Overload and short-circuit protection
• Thermal shutdown
• Default output: High and Low options
• Low propagation delay: 13 ns Typ (5-V supply)
• Robust electromagnetic compatibility (EMC)
– System-level ESD, EFT, and surge immunity
– ±8 kV IEC 61000-4-2 contact discharge protection across isolation barrier
– Low emissions
• 16-pin Wide SOIC package
• Extended temperature range: –40°C to +125°C
• Safety-related certifications:
– 7071-VPK reinforced isolation per DIN V VDE V
0884-11:2017-01
– 5000-VRMS isolation for 1 minute per UL 1577
– CSA Certification per IEC 60950-1, IEC 62368-1 and IEC 60601-1 end equipment standards
– CQC Approval per GB4943.1-2011
– TUV Certification according to EN 60950-1 and EN 61010-1
Applications of ISOW7841DWER
• Industrial automation
• Motor control
• Grid infrastructure
• Medical equipment
• Test and measurement
Environmental & Export Classifications of ISOW7841DWER
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
