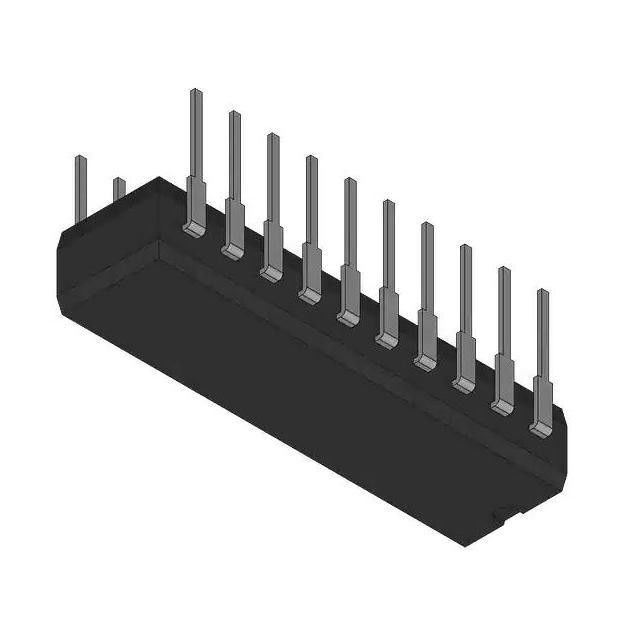

Bulk SN54ALS273J Electronic IC Chips OCTAL D-TYPE FLIP-FLOPS 7V
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN54ALS273J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Bulk | Category: | Logic Flip Flops |
|---|---|---|---|
| Military Temperature Range: | – 55°C To 125°C | Operation Temperature Range: | 0°C To 70°C |
| Supply Voltage, VCC: | 7V | Input Voltage, VI: | 7V |
| High Light: | Bulk SN54ALS273J,OCTAL SN54ALS273J,OCTAL D-TYPE FLIP-FLOPS 7V |
||
Product Description
SN54ALS273J Wireless RF Module OCTAL D-TYPE FLIP-FLOPS 7V 70°C
54ALS273 OCTAL D-TYPE FLIP-FLOPS
Specifications of SN54ALS273J
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Flip Flops | |
| Mfr | Texas Instruments |
| Series | * |
| Package | Bulk |
| Product Status | Active |
| Base Product Number | 54ALS273 |
Features of SN54ALS273J
• Contain Eight Flip-Flops With Single-Rail Outputs
• Buffered Clock and Direct-Clear Inputs
• Individual Data Input to Each Flip-Flop
• Applications Include:
Buffer/Storage Registers
Shift Registers
Pattern Generators
• Package Options Include Plastic
Small-Outline (DW) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N)
and Ceramic (J) 300-mil DIPs
Descriptions of SN54ALS273J
These octal positive-edge-triggered flip-flops utilize TTL circuitry to implement D-type flip-flop
logic with a direct-clear (CLR) input.
Information at the data (D) inputs meeting the setup-time requirements is transferred to the Q outputs on the positive-going edge of the clock
(CLK) pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When CLK is at either the high or low level, the D input signal has no effect at the output.
The SN54ALS273 is characterized for operation over the full military temperature range of – 55°C
to 125°C. The SN74ALS273 is characterized for operation from 0°C to 70°C.
Environmental & Export Classifications of SN54ALS273J
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
