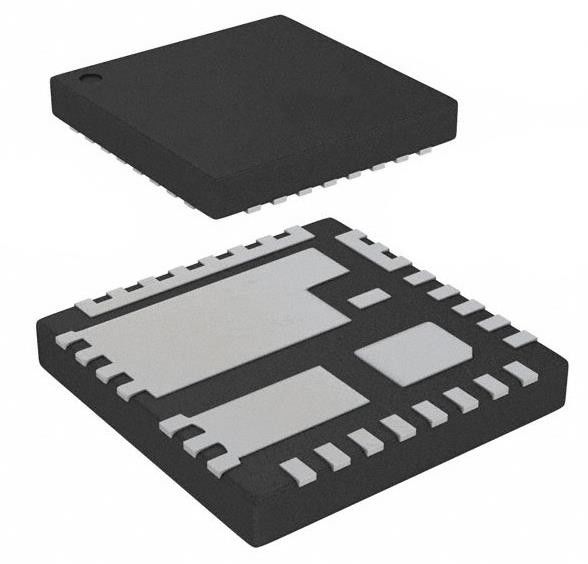

FDMF3035 Half Bridge Driver Synchronous Buck Converters UMOS 31-PQFN (5x5)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FDMF3035 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Voltage - Input (Min): | 2.5V |
|---|---|---|---|
| Voltage - Input (Max): | 5.5V | Voltage - Output (Min/Fixed): | 0.6V |
| Voltage - Output (Max): | 0.6V | Current - Output: | 3A |
| Frequency - Switching: | 2.4MHz | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
FDMF3035 Half Bridge Driver Synchronous Buck Converters UMOS 31-PQFN (5x5)
Specifications of FDMF3035
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Full Half-Bridge Drivers | |
| Mfr | onsemi |
| Series | PowerTrench®, SyncFET™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive |
| Technology | UMOS |
| Rds On (Typ) | 1Ohm LS, 1Ohm HS |
| Current - Output / Channel | 50A |
| Current - Peak Output | 50A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 24V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, Diode Emulation |
| Fault Protection | Shoot-Through, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 31-PowerWFQFN |
| Supplier Device Package | 31-PQFN (5x5) |
| Base Product Number | FDMF3035 |
Features of FDMF3035
• Supports PS4 Mode for IMVP−8
• Ultra−Compact 5 mm x 5 mm PQFN Copper−Clip Package with Flip Chip Low−Side MOSFET
• High Current Handling: 50 A
• 3−State 5 V PWM Input Gate Driver
• Low Shutdown Current IVCC < 6 A
• Diode Emulation for Enhanced Light Load Efficiency
• onsemi POWERTRENCH MOSFETs for Clean Voltage Waveforms and Reduced Ringing
• onsemi SyncFET™Technology (Integrated Schottky Diode) in Low−Side MOSFET
• Integrated Bootstrap Schottky Diode
• Optimized / Extremely Short Dead−Times
• Under−Voltage Lockout (UVLO) on VCC
• Optimized for Switching Frequencies up to 1.5 MHz
• Operating Junction Temperature Range: −40°C to +125°C
• onsemi Green Packaging and RoHS Compliance
Applications of FDMF3035
• Notebook, Tablet PC and Ultrabook
• Servers and Workstations, V−Core and Non−V−Core DC−DC Converters
• Desktop and All−in−One Computers, V−Core and Non−V−Core DC−DC Converters
• High−Current DC−DC Point−of−Load Converters
• Small Form−Factor Voltage Regulator Modules
