FAN53526UC00X Switching Regulator IC Positive Programmable 0.6V 1 Output 3A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FAN53526UC00X |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Voltage - Input (Min): | 2.5V |
|---|---|---|---|
| Voltage - Input (Max): | 5.5V | Voltage - Output (Min/Fixed): | 0.6V |
| Voltage - Output (Max): | 0.6V | Current - Output: | 3A |
| Frequency - Switching: | 2.4MHz | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
FAN53526UC00X Switching Regulator IC Positive Programmable 0.6V 1 Output 3A
Specifications of FAN53526UC00X
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | onsemi |
| Series | TinyBuck® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Programmable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 0.6V |
| Current - Output | 3A |
| Frequency - Switching | 2.4MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

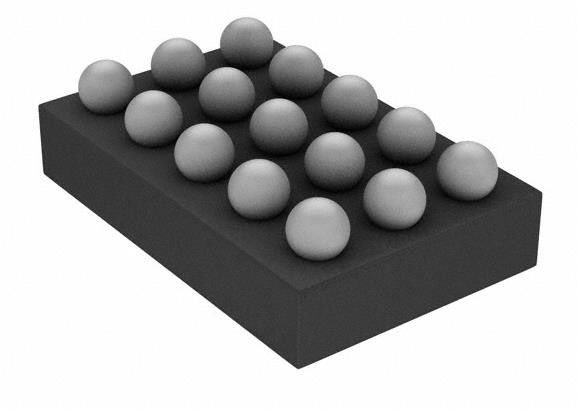

| Package / Case | 15-UFBGA, WLCSP |
| Supplier Device Package | 15-WLCSP (2.02x1.31) |
| Base Product Number | FAN53526 |
Features of FAN53526UC00X
• Fixed−Frequency Operation: 2.4 MHz
• Best−in−Class Load Transient
• Continuous Output Current Capability: 3.0 A
• 2.5 V to 5.5 V Input Voltage Range
• Digitally Programmable Output Voltage:
♦ 0.600 V to 1.39375 V in 6.25 mV Steps
• Programmable Slew Rate for Voltage Transitions
• I2C−Compatible Interface Up to 3.4 Mbps
• PFM Mode for High Efficiency in Light-Load
• Quiescent Current in PFM Mode: 50 A (Typical)
• Input Under−Voltage Lockout (UVLO)
• Thermal Shutdown and Overload Protection
• 15−Bump Wafer−Level Chip Scale Package (WLCSP)
Applications of FAN53526UC00X
• Application, Graphic, and DSP Processors
♦ ARM, Tegra, OMAP, NovaThor,ARMADA, Krait, etc.
• Hard Disk Drives, LPDDR3, LPDDR4
• Tablets, Netbooks, Ultra−Mobile PCs
• Smart Phones
• Gaming Devices
