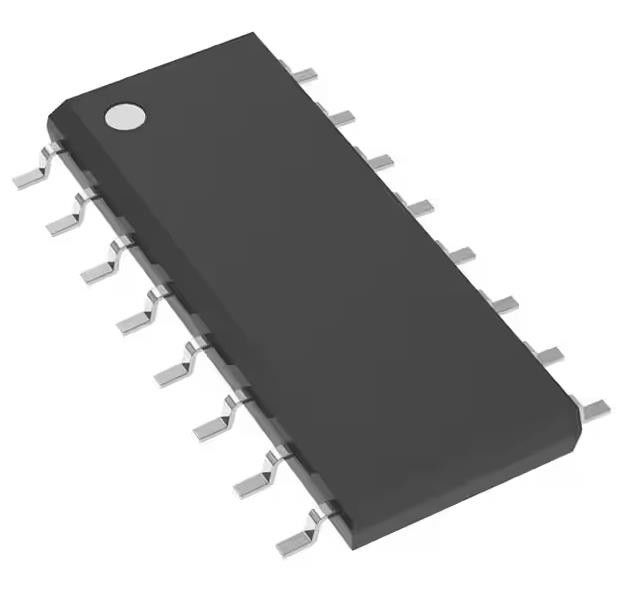

DS90C031BTMX/NOPB 4/0 Driver LVDS 16-SOIC 4.5V ~ 5.5V -40°C ~ 85°C
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DS90C031BTMX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Core Processor: | 8051 | Program Memory Type: | ROMless |
|---|---|---|---|
| RAM Size: | 16K X 8 | Interface: | I²C, USB, USART |
| Number Of I/O: | 40 | Voltage - Supply: | 3V ~ 3.6V |
Product Description
DS90C031BTMX/NOPB 4/0 Driver LVDS 16-SOIC 4.5V ~ 5.5V -40°C ~ 85°C
Specifications of DS90C031BTMX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Driver |
| Protocol | LVDS |
| Number of Drivers/Receivers | 4/0 |
| Duplex | - |
| Data Rate | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | DS90C031 |
Features of DS90C031BTMX/NOPB
* >155.5 Mbps (77.7 MHz) switching rates
* High impedance LVDS outputs with power-off
* +350 mV differential signaling
* Ultra low power dissipation
* 400 ps maximum differential skew (5V, 25°C)
* 3.5 ns maximum propagation delay
* Industrial operating temperature range
* Pin compatible with DS26C31, MB571 (PECL)and 41LG(PECL)
* Conforms to ANSI/TIA/EIA-644 LVDS standard
* Offered in narrow body SOlC package
* Fail-safe logic for floating inputs
Applications of DS90C031BTMX/NOPB
The DS90C031B is a quad CMOS differential linedriver designed for applications requiring ultra lowpower dissipation and high data rates. The devicesupports data rates in excess of 155.5 Mbps (77.7MHz) and uses Low Voltage Differential Signaling(LVDS) technology.
