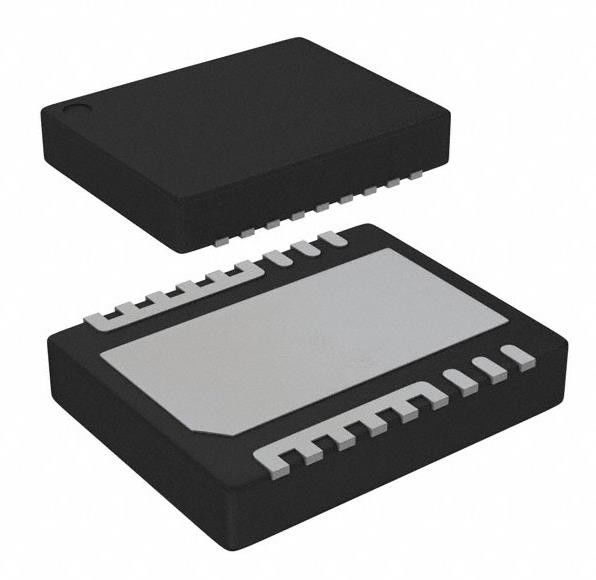

CSD97396Q4MT Half Bridge Driver Synchronous Converters Power MOSFET 8-VSON
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CSD97396Q4MT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Bootstrap Circuit, Diode Emulation | Current - Output / Channel: | 30A |
|---|---|---|---|
| Current - Peak Output: | 65A | Voltage - Supply: | 4.5V ~ 5.5V |
| Voltage - Load: | 4.5V ~ 24V | Operating Temperature: | -40°C ~ 150°C (TJ) |
Product Description
CSD97396Q4MT Half Bridge Driver Synchronous Converters Power MOSFET 8-VSON
Specifications of CSD97396Q4MT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Full Half-Bridge Drivers | |
| Mfr | Texas Instruments |
| Series | NexFET™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | - |
| Current - Output / Channel | 30A |
| Current - Peak Output | 65A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 24V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, Diode Emulation |
| Fault Protection | Shoot-Through |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerVFDFN |
| Supplier Device Package | 8-VSON (3.5x4.5) |
| Base Product Number | CSD97396 |
Features of CSD97396Q4MT
* Over 93% System Efficiency at 15 A
* Max Rated Continuous Current 30 A, Peak 65 A
* High Frequency Operation (up to 2 MHz)
* High Density - SON 3.5 mm x 4.5 mm Footprint
* Ultra-Low Inductance Package
* System-Optimized PCB Footprint
* Ultra-Low Quiescent (ULQ) Current Mode
* 3.3 V and 5 V PWM Signal Compatible
* Diode Emulation Mode With FCCM
* Input Voltages up to 24 V
* Tri-State PWM Input
* Integrated Bootstrap Diode
* Shoot-Through Protection
* RoHS Compliant - Lead Free Terminal Plating
* Halogen Free
Applications of CSD97396Q4MT
* Ultrabook/Notebook DC/DC Converters
* Multiphase Vcore and DDR Solutions
* Point-of-Load Synchronous Buck in Networking Telecom, and Computing Systems
